Corwei CW58 4G manual gps sms gprs tracker lora long distances

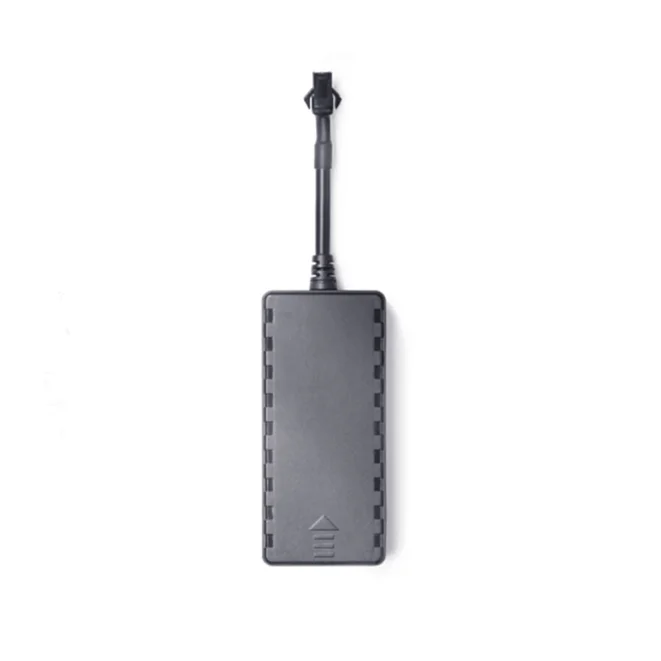

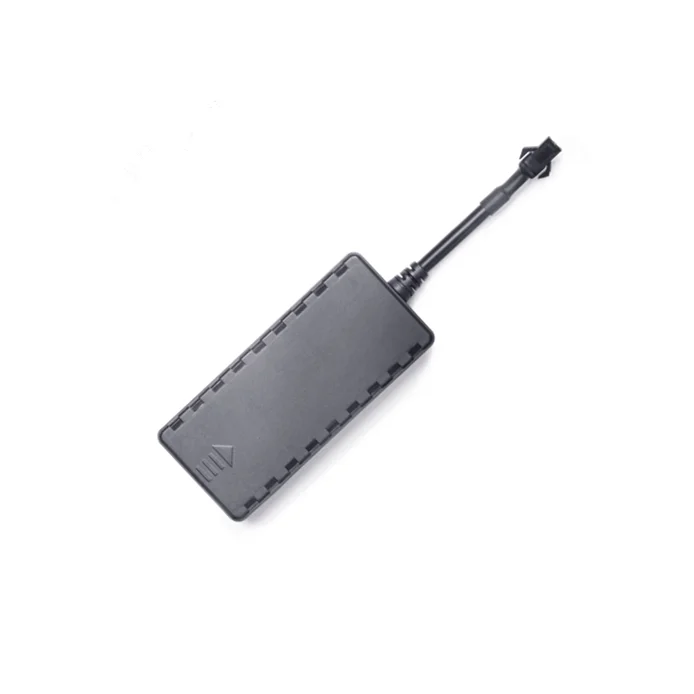

Low Cost Easy Installed LTE 4G GPS Tracking Device For Truck/Car/Taxi/Motocycle/Other Vehicle
1-Applications:
Car/Taxi/Truck/Bus tracking
Motorcycle Tracking
Fleet management
Renting Business
2- Specifications:
No.
Item
Specifications
1
Working voltage
DC9V-90V
2
Working current
60mA@12V(Static Current 30mA)
3
Size
84mm*38mm*12mm
4
Module
EC25
5
Positioning accuracy
<10 Meters
6
Communication Network
Support 2G3G4G network
7
Frequency
CW58-E
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
CW58-A
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
CW58-AU
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Note: Please select correct device according to your local frequency band, or contact us for help.
8
Communication Way
TCP
9
Working Temperature
-25~ +75
10
Storage Temperature
-40 ~ +85
11
Standby Battery
55mA/h
12
Warranty
18months
3- Functions:
Functions
Function Details
Description
Location data report

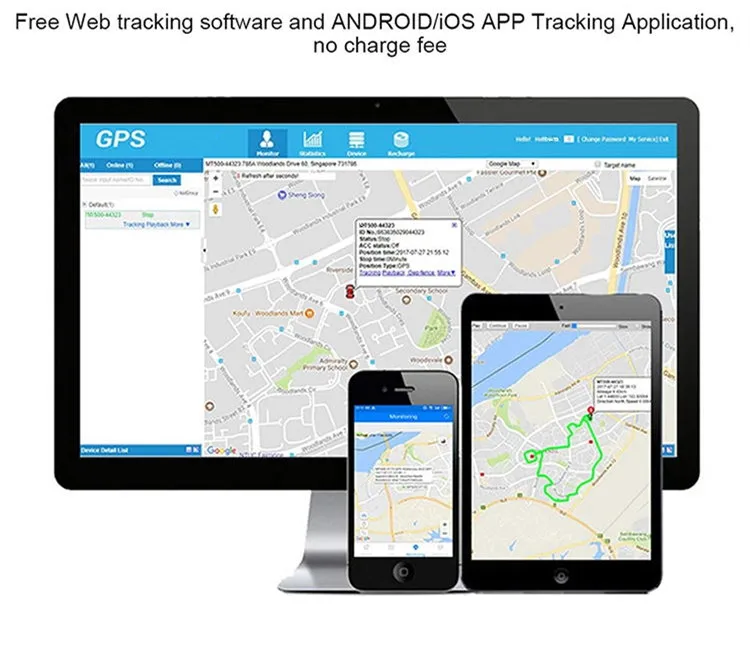

Real-time tracking
Upload the longitude and latitude information according to the time interval.
Vehicle status detection
ACC on/off status
Uploaded data include the ACC on/off status each time.
Power down alarm
Turn on backup battery, when the vehicle voltage is lower than 5v, the device upload an alarm to the server.
Over speed alarm
Set the maximum speed limit value on the platform or SMS, when the GPS speed is more than the value, the device will upload an alarm to the server
Remote control
Cut off/supply fuel remotely through server or SMS.
Other functions
Blind area uploading data
The data is stored up to 300pcs. If the terminal is located and not online, upload this data when the signal is good
Inflection upload
When the angle that vehicle turned is more than a normal scale it will upload a location data soon to optimize the playback.
Upgrade remotely
Firmware will be upgraded remotely, and our factory will assistant to it.
Low power consumption
Static mode
The 3D triaxial acceleration sensor detects vibration status of vehicle in real time, when the car is moving, the device is in motion mode; the device will change to static mode after 5 minutes without vibration, close the GPS module, when vibration is detected, the device automatically changes to motion mode.
