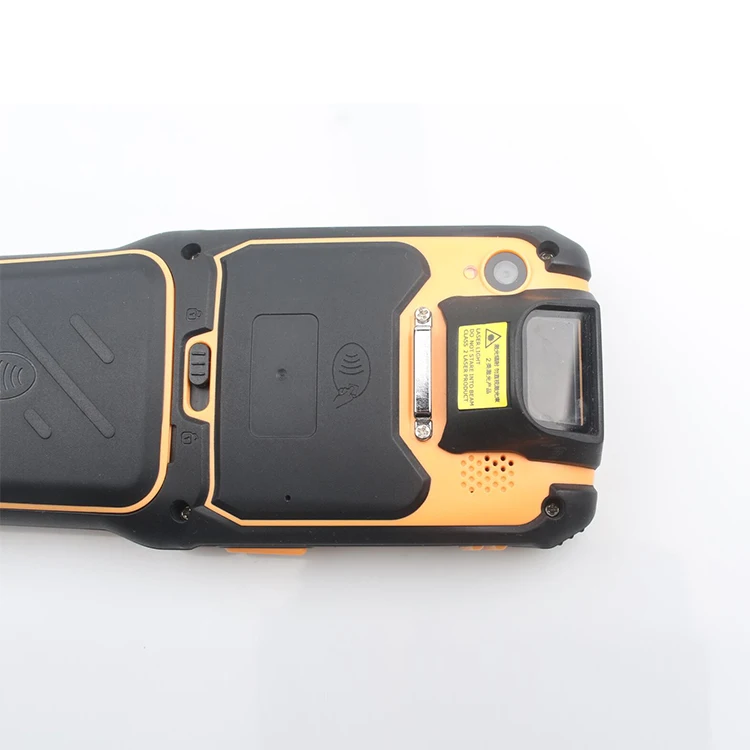

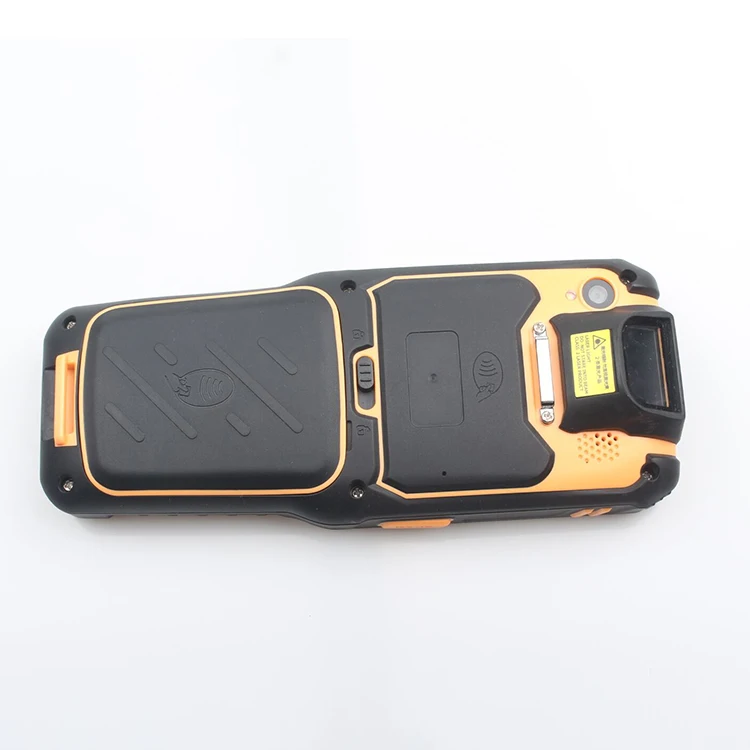

Application range: Logistic ,Vehicle management,electronic meter reading,electronic power monitoring,parking ,policeman ID checking ,storage ,hospital checking ,retail ,bank,Check-in ,Building worker management
Feature: wide application ,4G network ,can be used in tough environment
network: 4G network
Function: NB IOT, 1D/2D scanning ,ID identify ,UHF,HF,PSAM ,camera shooting
Support: WIFI,BT,GPS
Tough environment: wet,glove handling ,can be visible under high power light
Design: human engineering ,portable ,make user comfortable
Physical Parameter Data Communication
dimension 175mmx74mmx33mm IEEE 802.11a/b/g/n
weight 309gram FDD-LTE: B1/B3
TDD-LTE: B38/B39/B40/B41
WCDMA: B1/B2
CDMA2000: BC0
TD-SCDMA: B34/B39
GSM/GPRS: 850/900/1800/1900
battery 3.8V,4400mAh BT 4.0 BLE
screen 3.5inch IPS screen ,480*640 suppot gps and Beidou location ,
w/t accurate 10meter
touch panel Gorilla ,multi-capatitive touch, support fingerprint unlock by wet hand,glove .anti-oil,anti-fingerprint layer Data collect/capature
card slot support 1*Nano-SIM ,1*TF card,2*PSAM card 1 D bar /2D bar
I/O port USB 2.0,Type-C, OTG, 1*earphone, DC charging port UPC/EAN,Code128,Code39,Code93,
Code11,Interleaved 2 of 5, Discrete
2 of 5 ,Chinese 2 of 5 ,Codabar ,
MSI ,RSS,ETC
audio speaker,microphone(support MIC noise reduction) ,support V0-LTE, Code39,Code 128,PDF417,MicroPDF417,
Datamatrix,Composite ,RSS,TLC-39,
QR code, Micro QR code,Aztec,Maxicode ,
Postal code ,US PostNet ,US planet ,
UK Postal ,Australian Postal ,Japan Postal ETC
keyboard 25 main keys ,3 side keys
Sensor G-sensor, L-sensor,P-sensor,vibrator 13.56Mhz
camera rear camera,8MP ,auto-focus with flash ISO14443A/B, ISO15693,NFC
Light RGB breathe light M1 card (S50,S70),CPU card ,NFC label
Performance Parameter 2-5cm
CPU qualcomm MSM8909 quad core 1.2G PSAM card function
RAM 2GB RAM ISO/IEC7816-1/2/3/4
ROM 16GB ROM support 2*PSAM card slot
expansion TF card expansion ,up to 64G memory
Working Environment UHF RFID data capature
working temperature -10~50 FCC 902-928MHz ETSI(Europe) 865-867MHz SRRC-MII(China) 840-845MHz,920-925MHz
storage temperature -40~70 EPC Class I Gen 2( ISO 18000-6C)
working humidity 5% to 95% >3 meter,2dbi ceramic antenna subject to
the label size
waterproof IP67 >50tags/s
drop six aspect can stand up with the dropping under 1.2 meter to the concrete ground
Development Environment Gen 2 ID
OS Android 5.1/Android 7.1 13.56Mhz
SDK software development tool package internal Gen 2 ID module
Language Java
Development Tool Eclipse/Android Studio power adapter ,USB cable ,DC cable
