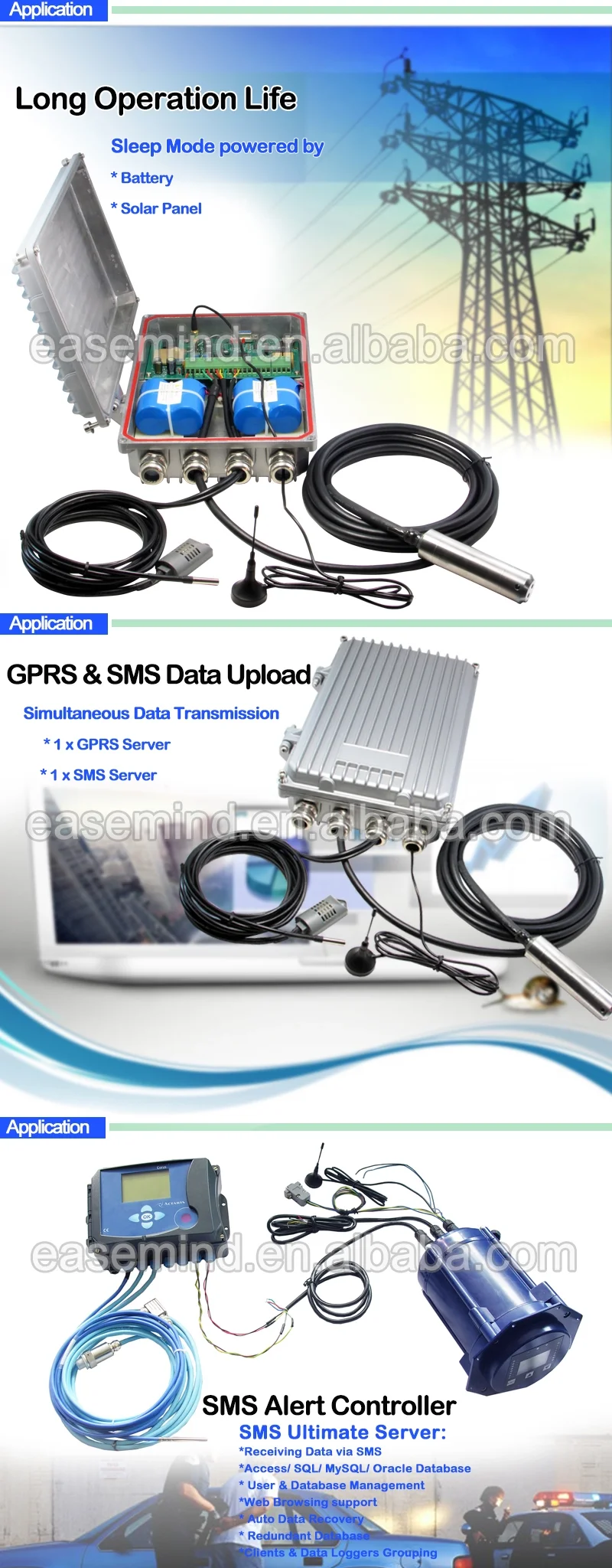

Low Power GPRS Digital solar energy system with wireless Data Logger
GSX8-L is a wireless Environmental data logging from low power mode.
It low power design provide 2 years sleep mode when working.
Overview:
* 2 Analog Channels
* 4 Digital Inputs
* 4 Pulse Channels
* 2 Digital Outputs
* RS485 Data In
Its internal 64KB memory logs more than a year data for one record each day.
Data can be uploaded to server at once a day to save power.
Flexible data logging interval starts from 1 minute up to 24 hours.
Features
1) Real Time GPRS and SMS Data Upload
2) Integrated 16 bit MCU & Siemens GPRS Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via RS232 by PC software
6) Remote Setup by SMS or GPRS
7) RS485 Port support data capturing via sensor devices
8) Support Dynamic Domain Name or Fixed IP, UDP / TCP protocol data transmission
9) Internal high capacity battery
Free Software:
[1] Data Logger Setup software is bundled for routine configuration via SMS remotely, or via RS232 port locally
[2] Data Logger Centre software is also provided for receiving data via GPRS.
[3] UDP/TCP Testing Tool is provided for easy communication testing and user development
[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial Equipment Monitoring
* rural Equipment Monitoring e.g. Power Plant
* measuring equipment data capture and report via SMS/GPRS
* Food, storage, transport industry, building management
* Agricultural, laboratory, medical industry
Product specifications
Product Model
GSX8-L
Multipoint Temperature
4 x temperature sensor
Product Feature
8 Temperature Sensors , portable
Sensors (max.)
2 Temperature Sensors
Operation Rating
80mA (data transmission)
Multipoint Temperature
4 x temperature sensor
Operating Voltage
2.6~3.6V DC
Temperature range
-55 ~ 125 C
Analog Channel
4~20mA, 0~5VDC
Humidity Range
0 - 100%RH
Power
Electronic
PhysicalCharacteristics
Metal Case
13 x 17 x 3 cm
IP67 Aluminum Case
28 x 20 x 9 cm
IP65 PVC Case
22 x 15 x 5 cm
