Introduction:
YET-U8 is a keypad and proximity card access controller operated in standalone mode. It has interfaces to connect with electric lock, door sensor, exit button and doorbell, which would compose of a simple access control system.
The YET-U8 metal key buttons are durable to use and the backlit keypad makes it easy to operate in darkness. The two LED lamps and buzzer beeps indicate the system status and make the device convenient to use.
The YET-U8 advantages such as slim and elegant design, easy to install, rugged metal housing make it perfect for installation in harsh environments.
Features:
1.
Reads password and/or 125KHz EM card; Customizable to read 13.56MHz Mifare1 card.
2.
Anti-vandal, Waterproof & Back-lit Metal Key Buttons.
3.
Audible beep and visible indicator provide feedback for the user.
4.
Access control interfaces for electric lock, door sensor, alarm, exit button and doorbell.
5.
With wiegand input & output signal
6.
Lock control delay, Unlock duration, Alarm delay are programmable from 0 to 254 second .
7.
Tamper alarm, door sensor alarm, error operation alarm .
8.
Slim, elegant and rugged design.
9. Waterproof:IP68,can working in the water.
Specifications:
| LED Indicator | Green, Red |
| Keypad | White backlit, Numeric keys 0~9, Function keys *, #, Bell |
| Verification Type | Card, PW, Card/PW, Card+PW |
| Built-in Card Reader | EM card (Optional Mifare1 card) |
| User Capacity | 2000 |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button and Doorbell |
| Wiegand signal | Input and output |
| Power In | 12V DC-24VDC |
| Operating Temperature | -20
C
- 50C |
| Operating Humidity | No more than 95% |
| Specification(W*H*D) | 58*135*22mm |
| Ingress Protection Rate | IP68 |

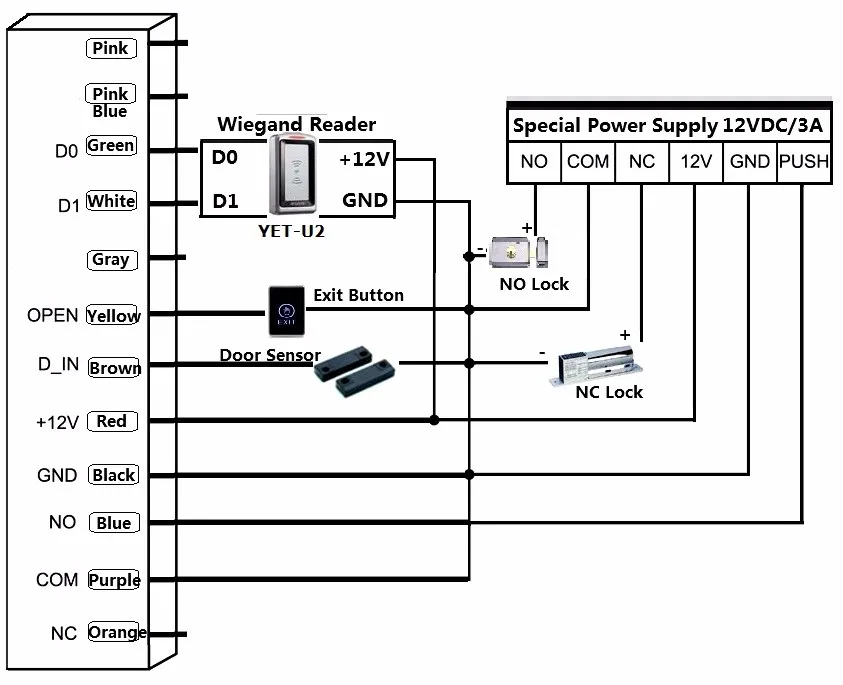

Diagram:

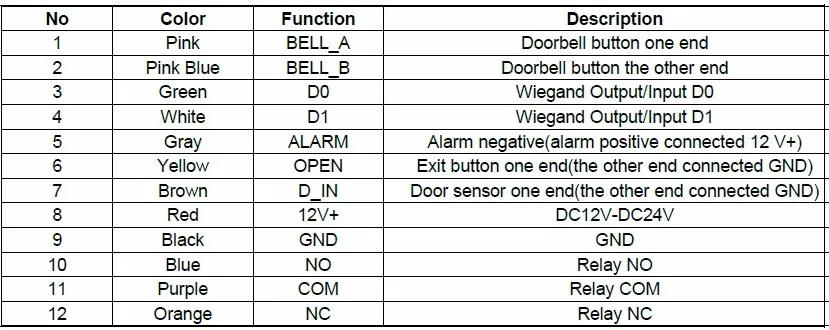

Wire Connection:
Package List:
10x YET-U8-W waterproof Digital keypad
10x User Manual
Some screws
10x 1N4004 diode
