Features:
Large through-current capacity, long service life.
Adopt multi-level protection, low residual voltage, good protection effect.
Low insertion loss, excellent transmission performance.
Built-in fast semiconductor protection device, nanosecond response speed.
Energy saving, environmental protection, rack structure for easy installation.
Scope of Application:

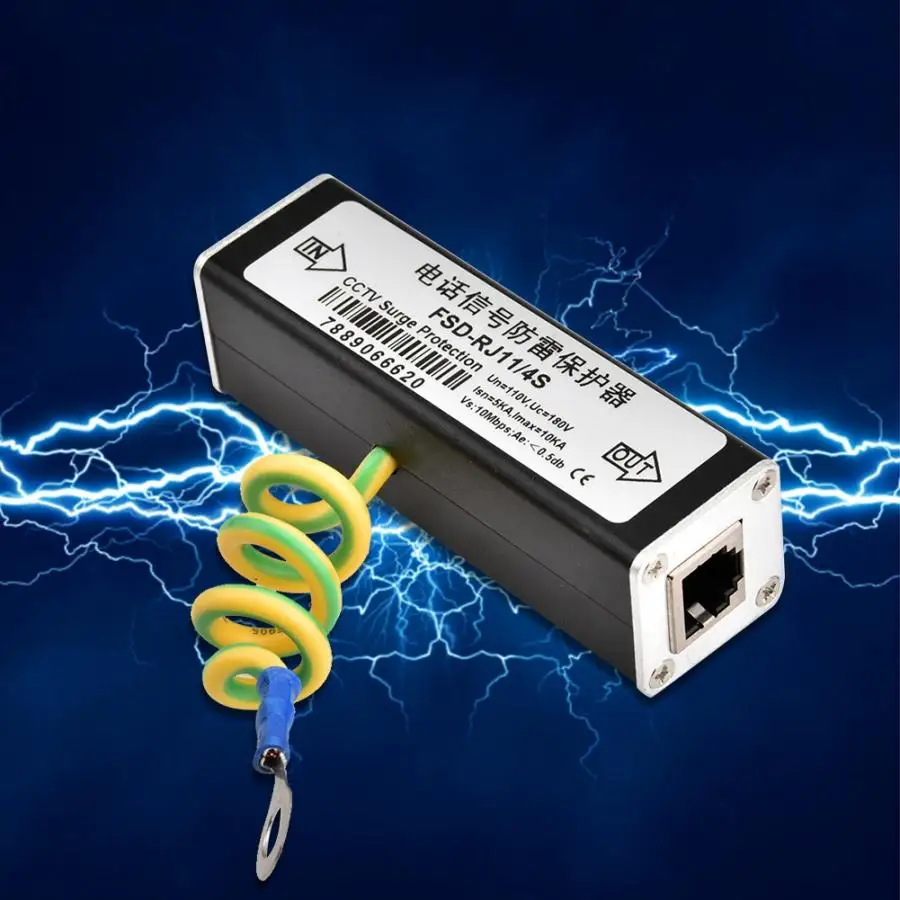

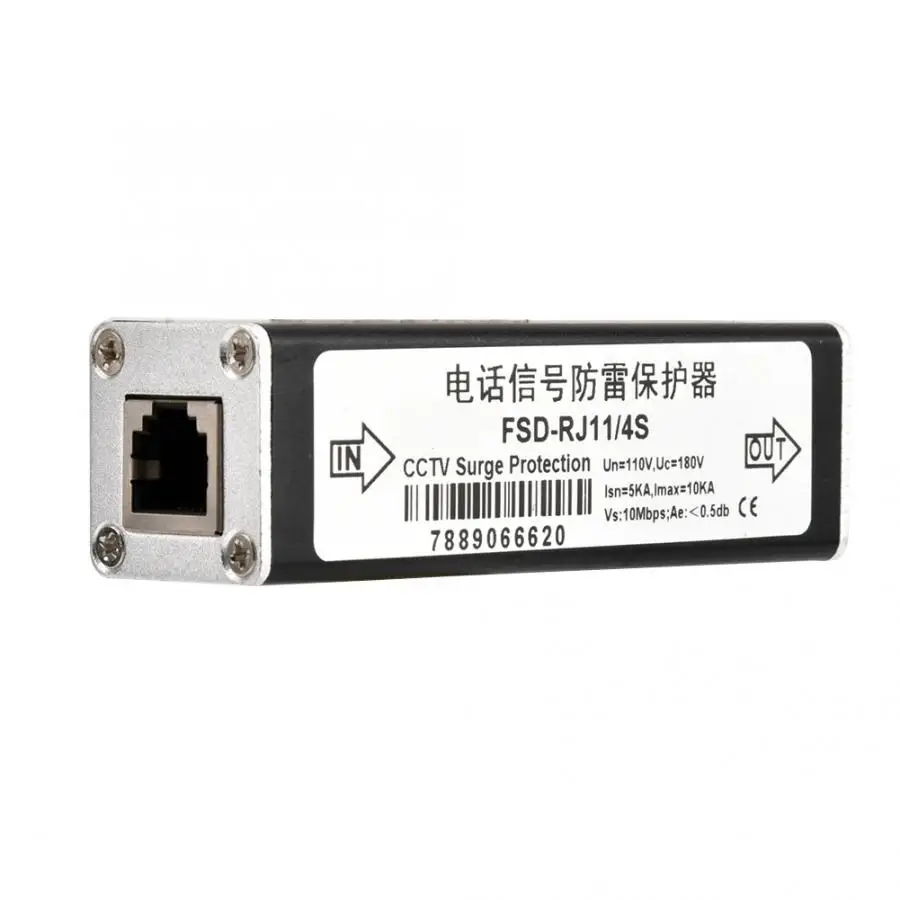

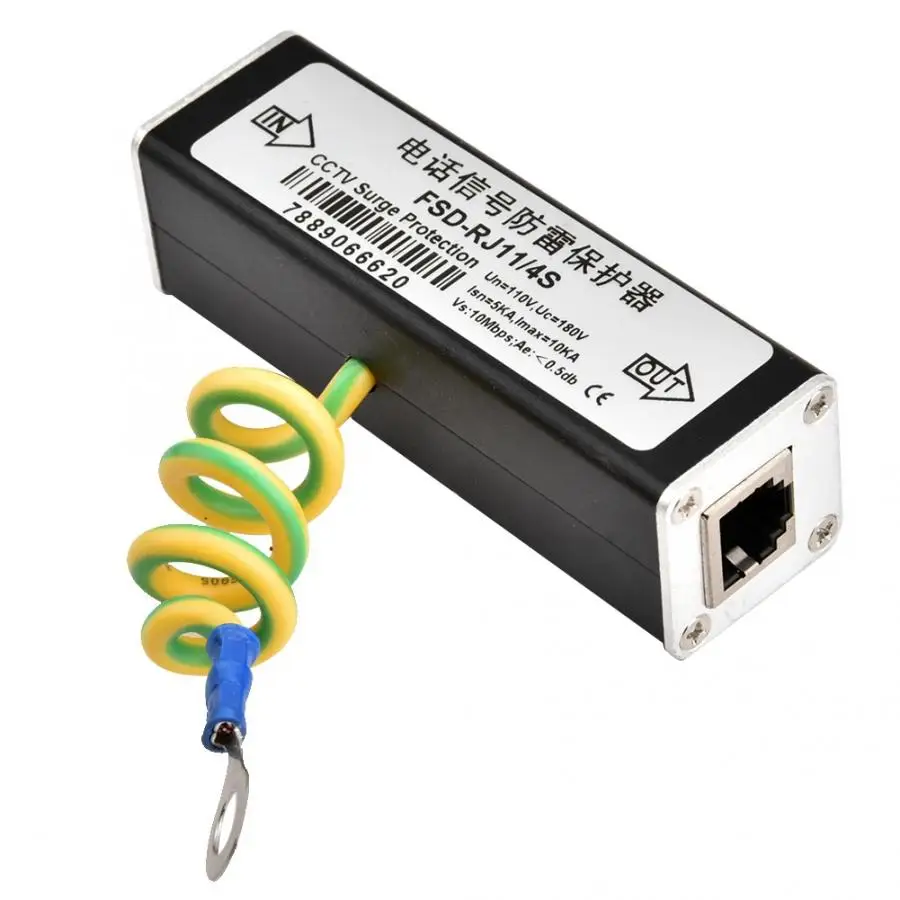

The audio telephone lightning protector (phone lightning arrester) is designed according to IEC and international standards, mainly used for lightning and overvoltage protection of telecommunication data communication signal lines and their equipment (such as telephone, SPC exchange, fax machine, ADSL, MODERN), easy to install, no need for special maintenance.
Specifications:
Condition:Brand New
Working Voltage Uc:110V
Limited Voltage Up:
180V
Through-current Capacity 8/20μs:5KA
Maximum Through-current Capacity 8/20μs:10KA
Adaptive Transmission Rate:2Mbps
Temperature Range:-40°C ~ +80°C
Installation Method:In series
Insertion Loss:≤0.5dB
Response Time:≤1ns
Interface Form:RJ11
Protection Level:IP20
Material:Metal
Color:Shown as picture
Size:Approx.80*25*25mm/3.1*1*1in
Package List:
1 * Telephone Surge Protector
1 * User Manual
