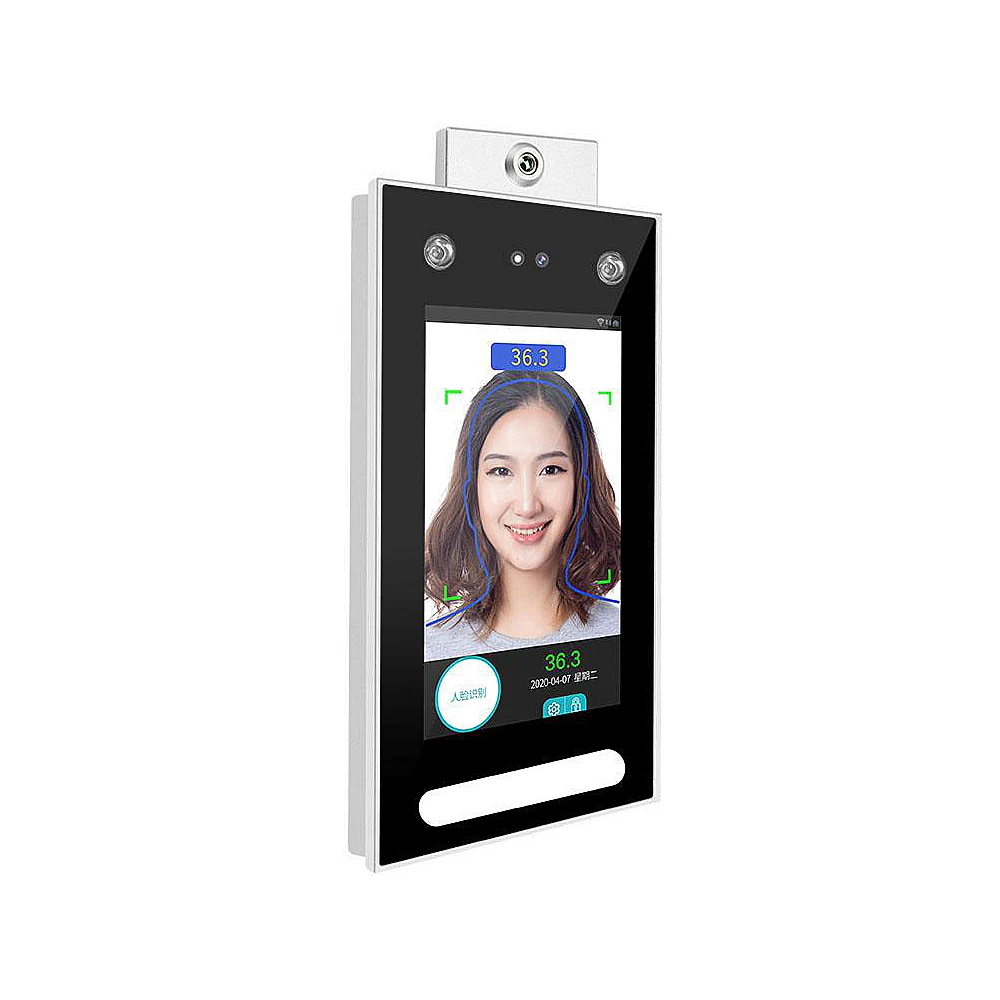

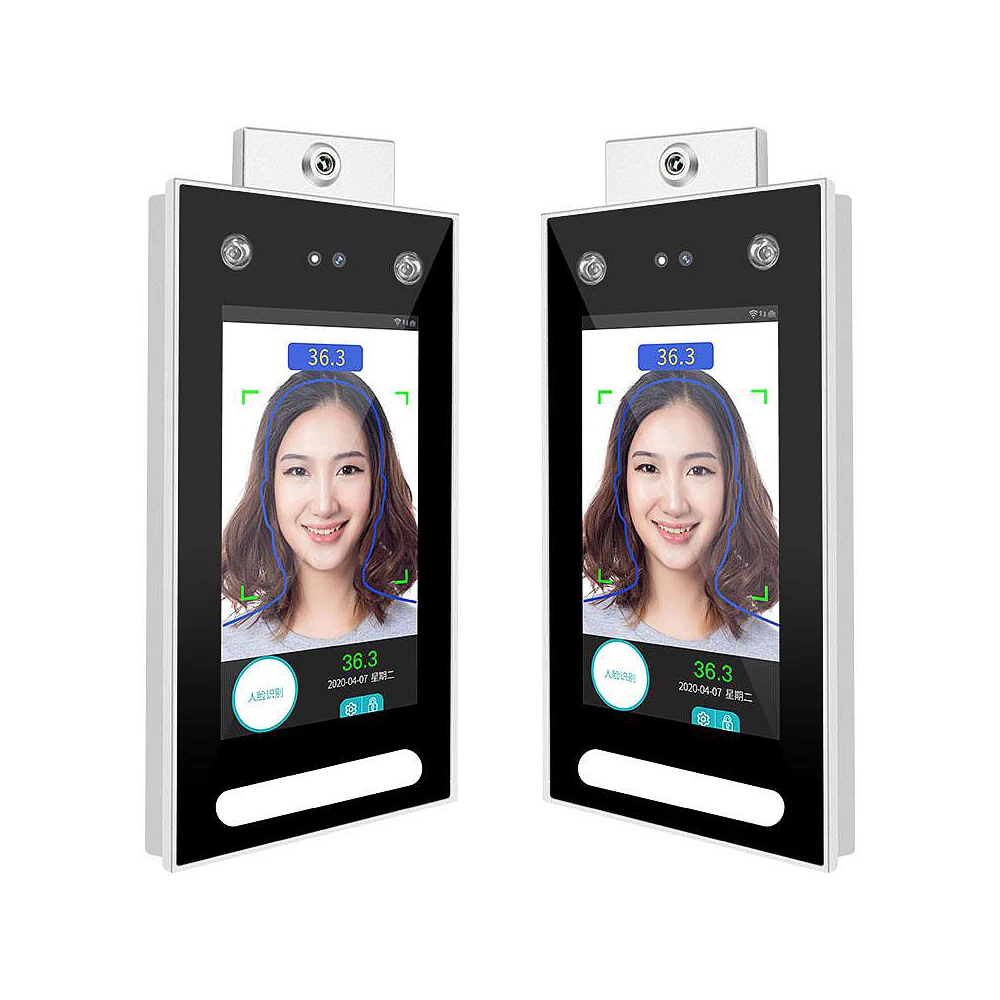

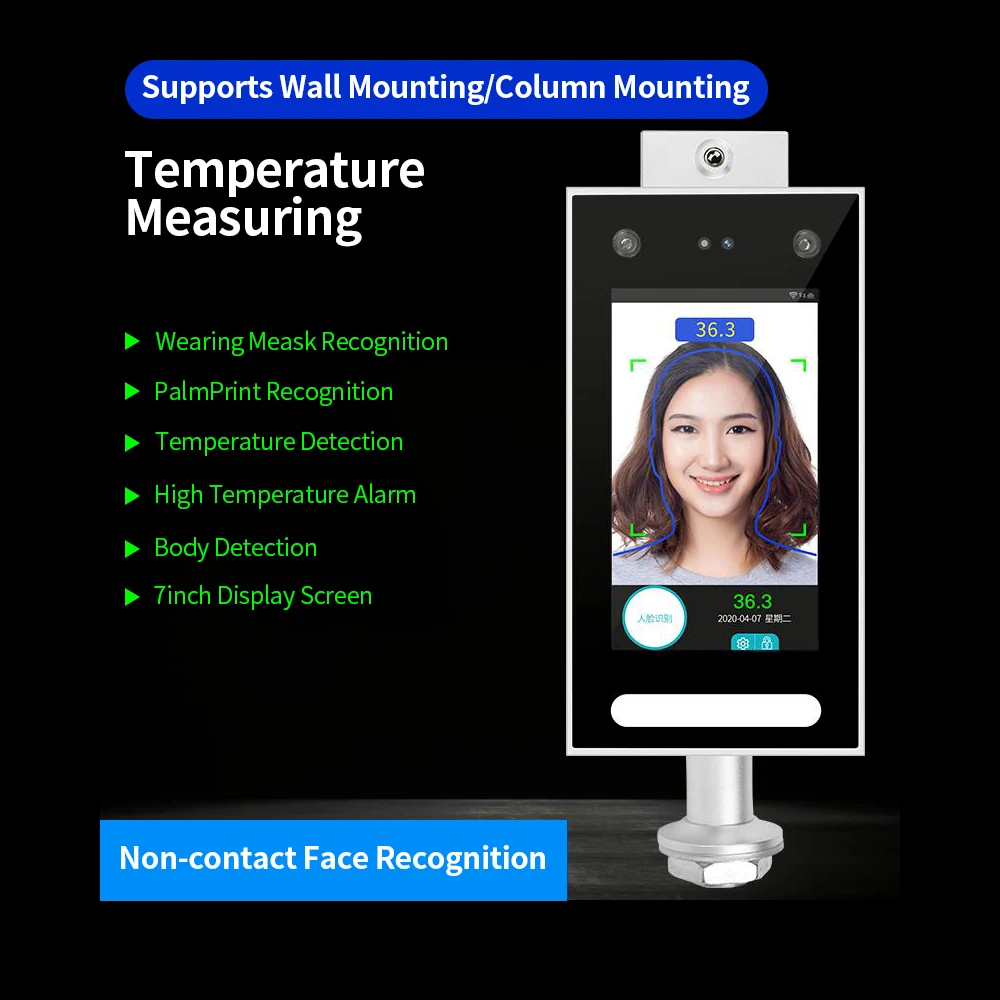

DT-10W refers to a 7inch temperature measurement face recognition terminal, which allows to measure the body temperature when people passes the access control and alarms in the case of abnormal body temperature. Suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects, etc.
Features:
Abnormal Temperature Alarm.
Allows to recognize even when wear the face mask, and it may alarm in the case of abnormal body temperature.

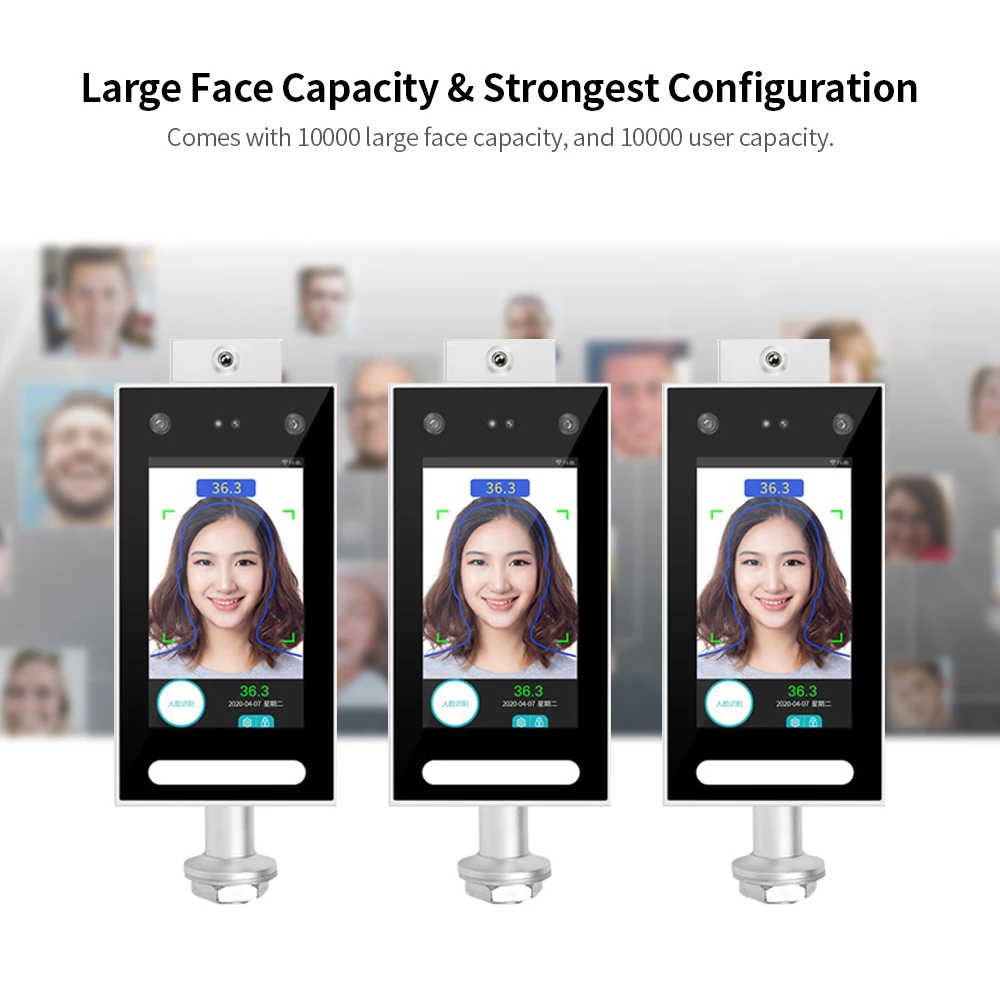

Large Face Capacity & Strongest Configuration.
Comes with 10000 large face capacity, and 10000 user capacity.

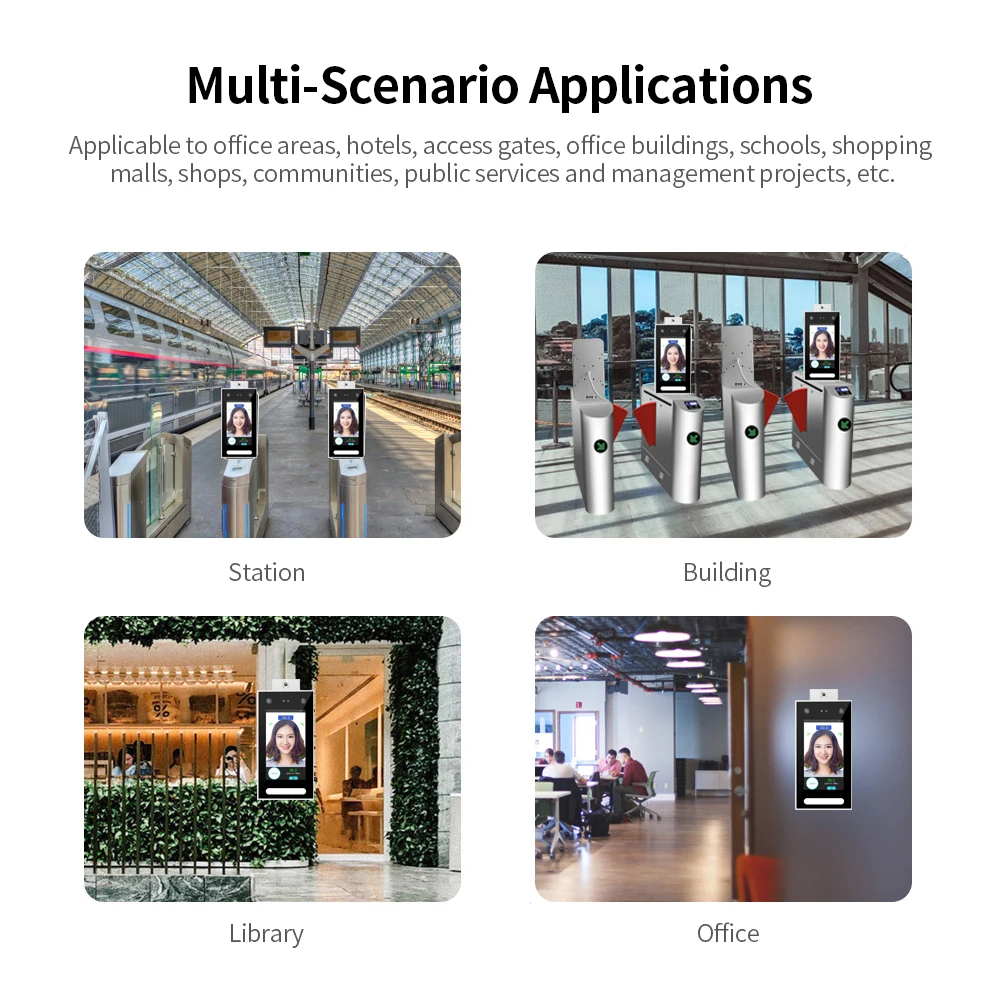

Wide Applications.
Applicable to office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects, etc.

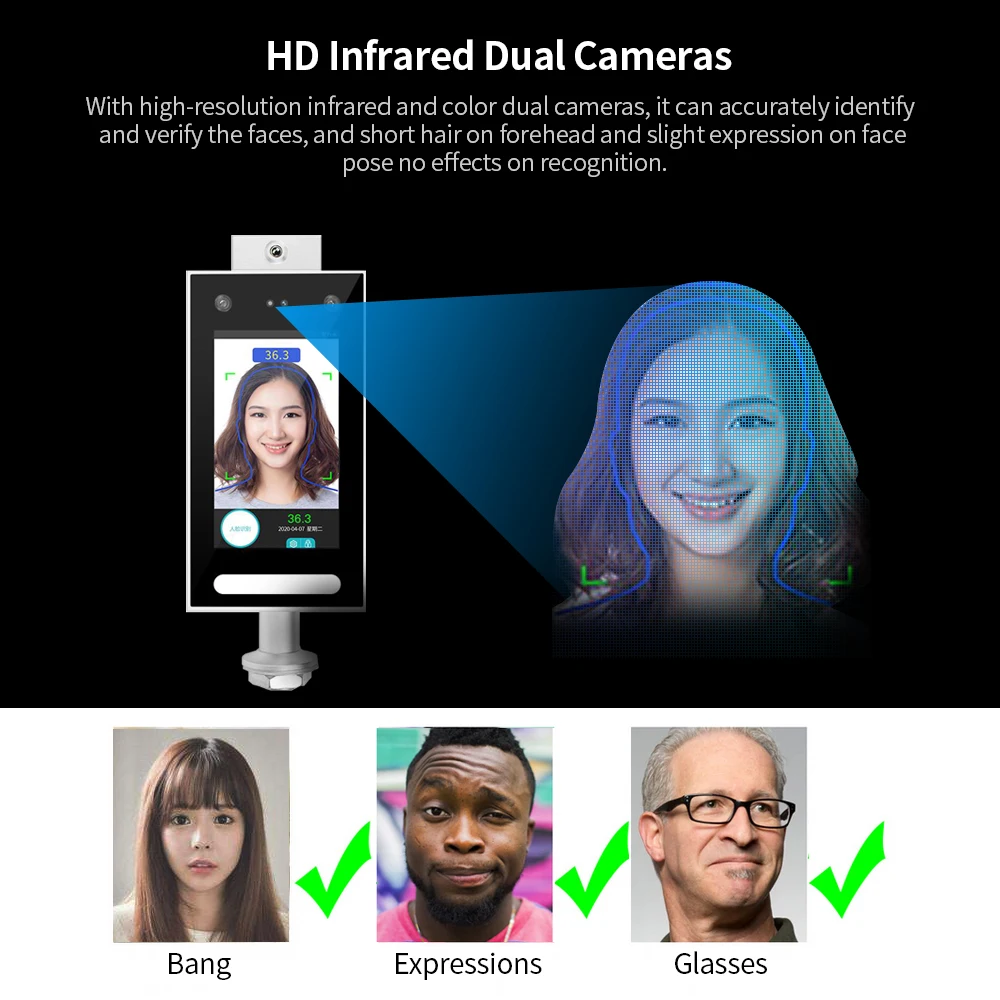

HD Infrared Dual Cameras.
With high-resolution infrared and color dual cameras, it can accurately identify and verify the faces, and short hair on forehead and slight expression on face pose no effects on recognition.
Body Temperature Measurement Distance 60-100cm.
When people passes the access control, it starts the face recognition, while measures the forehead and facial skin temperature quickly at 60-100cm in a non-contact, accurate and reliable manner.

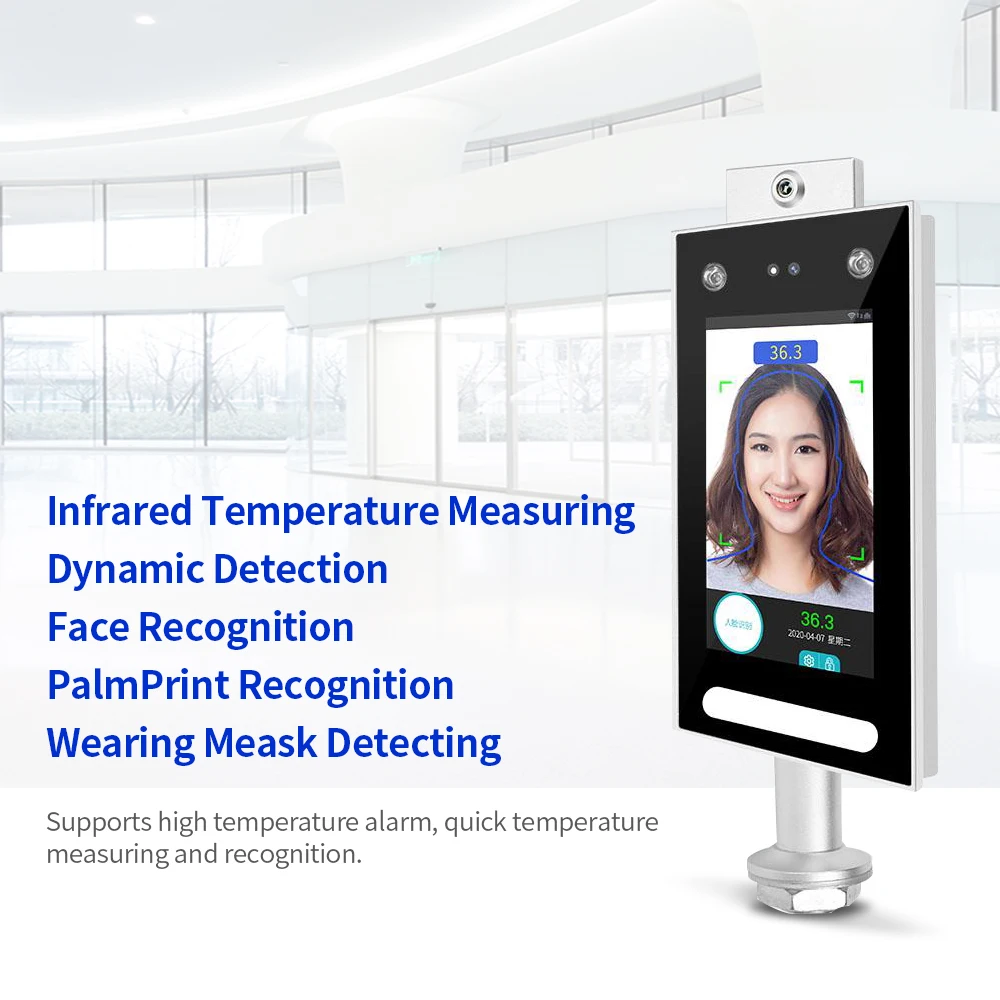

Multi-Functions.
Features face dynamic recognition, palmprint recognition and also body temperature measurement, more advanced and multi-functional.

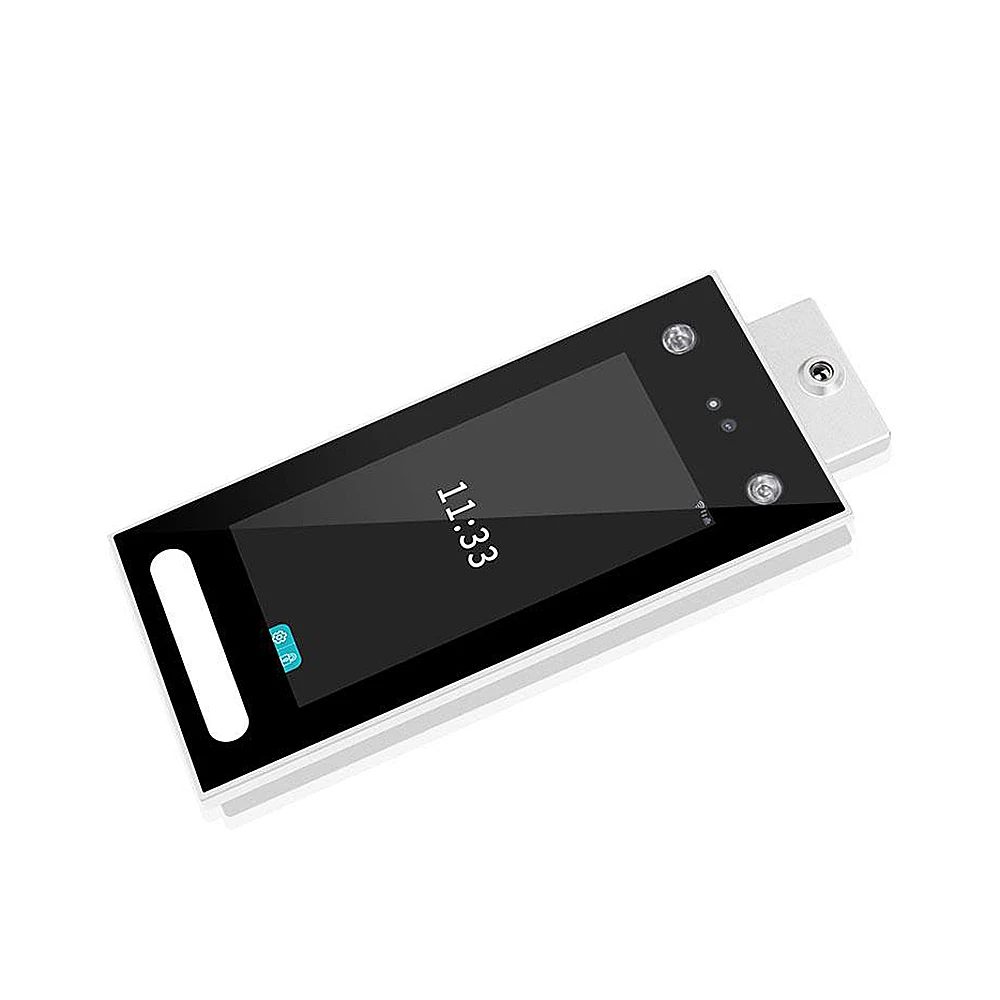

7inch Display Screen.
The 7inch touch screen, highly sensitive, shows more clearly and operates more conveniently.
Specification:
Type:Face Recognition Terminal
Model:DT-10W
CPU:ARM Cortex-A7 Quad-core, 1.2G
Storage:1G DDR3 8G eMMC
OS:LINUX
Camera:Dual Camera (HD Infrared & Color Dual Cameras)
IR LED:Yes
LCD:7inch HD Touch Screen
Infrared Approach Receiver:Yes
Touch Screen:Yes
Communication:TCP/IP, USB, U-Disk, WiFi
Body Temperature Detection:Support
Temperature Detection Distance:1m
Temperature Measurement Accuracy:≤0.3鈩?br />
Temperature Measurement Range:10鈩?42鈩?br />
Temperature Alarm:Support
Wearing Meask Detecting:Support
FRR:<= 1%
FAR:<= 0.0001%
USB port:Yes
Voice:Yes
Clock RTC:Yes
Working Voltage:DC12V - 24V
Ambient Light:0-50000Lux
Working Temperature:0鈩冿紞40鈩?br />
Working Humidity(RH):20% - 80%
User Capacity:10000
Face Capacity:10000
Storage Capacity:1000000
Recognition Way:face, palmprint password (card)
Language:Chinese/English (Korean/Japanese etc. Can customize language)
Face FAR/ FRR:0.001/0.1(%)
Recognition Speed:0.3s
Recognition Ways:1:1, 1:N
Door Sensor(EN-MG):Gate magnetic signal input
Alarm:Alarm output
Doorbell:Doorbell output
Exit:Door switch signal input
Wiegand:
1 group of WG26/34 input锛圗xternal reader available锛?br />
1 group of WG26/34 output
Tamper alarm:Yes
Item Weight:1300g / 45.9oz
Packing List:
1 * Face Dynamic Recognition Terminal
1 * Power Adapter
1 * CD
1 * Set of Installation Parts
