Products Description
Accuracy
active: 1.0, reactive: 2.0
Reference Voltage
3X220/380V
Normal Working Voltage
0.8Un~1.2Un
Extreme Working Voltage
0.7Un~1.3Un
Current
3 X 1.5(6)A, 3X5(60)A, 3X10(100)A
Frequency
50Hz±2.5Hz
Normal Working Temperature
-25~60
Limit Working Temperature
-40~70
Clock Accuracy
≤0.5s/d(23±2)
Clock Battery Volume
≥ 1200mAh
Clock Battery Working Time
≥ 10 years
2.7Weight
2.7Kg
Dimension
290 X170 X85(mm)
It is a smart energy manage meter with software platform for a total solution in smart buildings, factories, schools, hospital etc... Built-in wireless communication modem (GPRS/3G/4G/NB-IoT/LoRa) can collect the energy data from the meter and transmit remotely directly to the server platform for energy data analysis.
Dimensions & Installation
Functions&Application
System Diagram

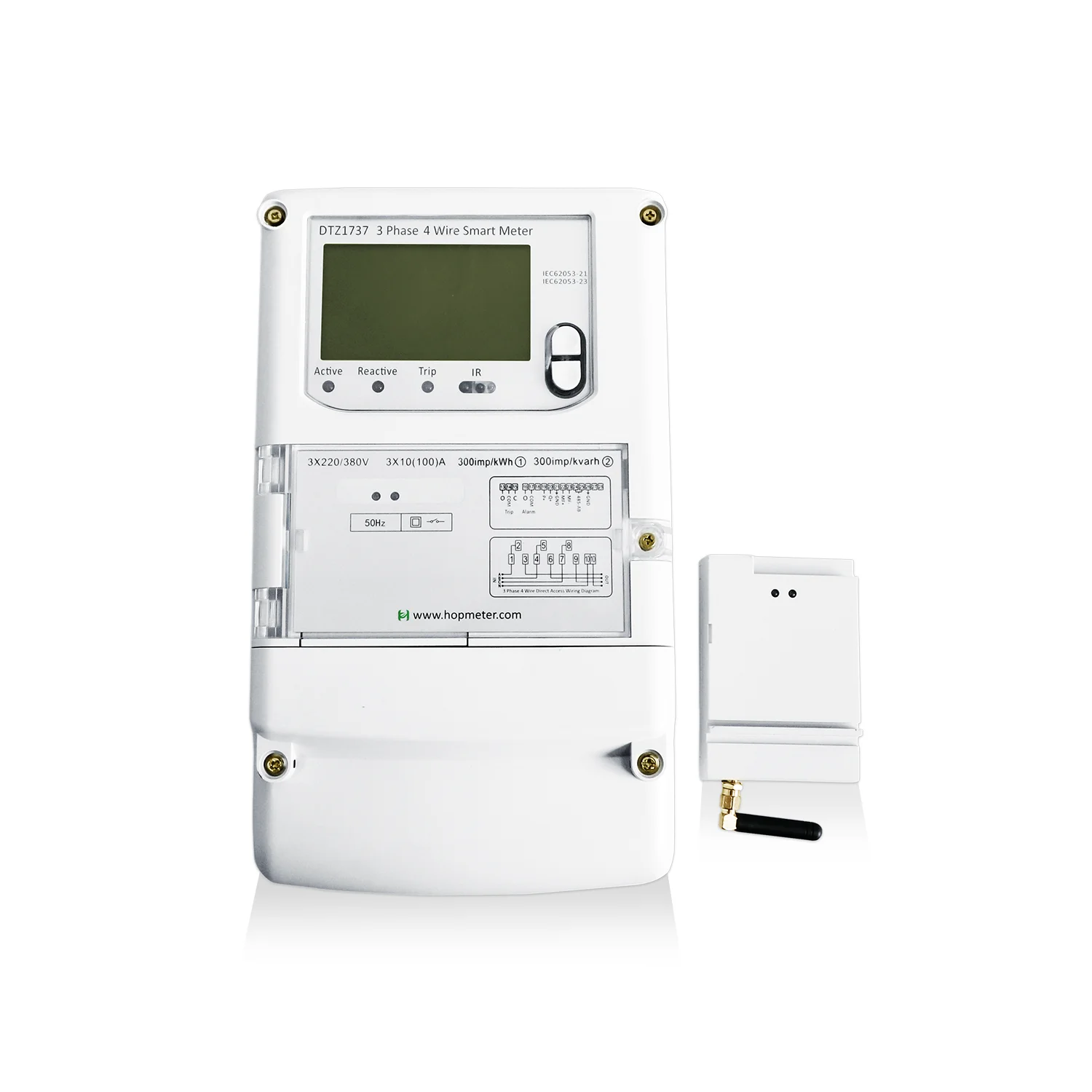

With built-in wireless communication modem, gprs modem, the meter can transmit the energy data directly to the server platform.The communication modem is flexible and changeable according to the local network situation. Metering and transmission two-in-one design is an excellent combination with advantages of cost saving, simple construction, quick deployment.

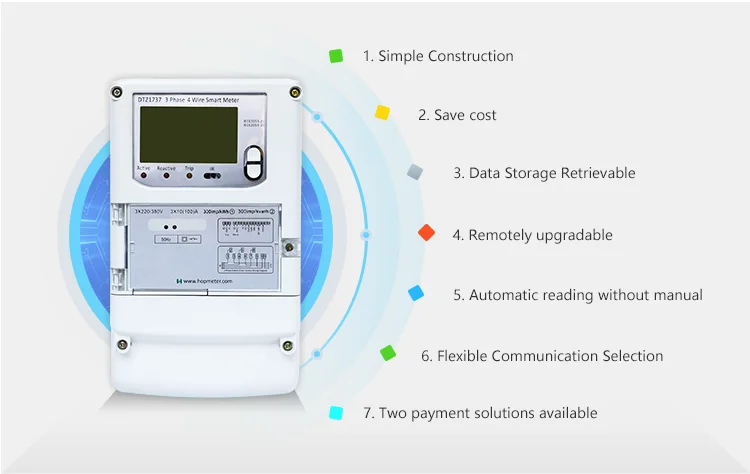

Functions1.Simple Construction:
Robust design with communication modem built in the meter.
2.Save cost:
Electricity meter + gateway two-in-one, no need external DTU device, no need RS485 wiring, saving equipment, materials and labor costs.
3.Data Storage Retrievable:
With great capacity, the GPRS modem can store energy data at least 2 months to avoid data loss in case of network gone.
4.Remotely upgradable:
The internal program of communication modem can be remotely upgraded, which is convenient for aftersales system maintenance.
5.Automatic reading without manual:
Remote reading of meter data through communication modem to reduce on-site labor costs.
6.Flexible Communication Selection:
The communication module can be selected according to the local network mode, for example, GPRS, 3G, 4G, and NB-IoT can be selected to achieve a matching network connection.
7.Two payment solutions available: pre-payment and post-payment.
ApplicationHop three-phase four-wire wall mounted smart energy meter is widely used for household building, sharing office, commercial building, industrial park. Etc.
