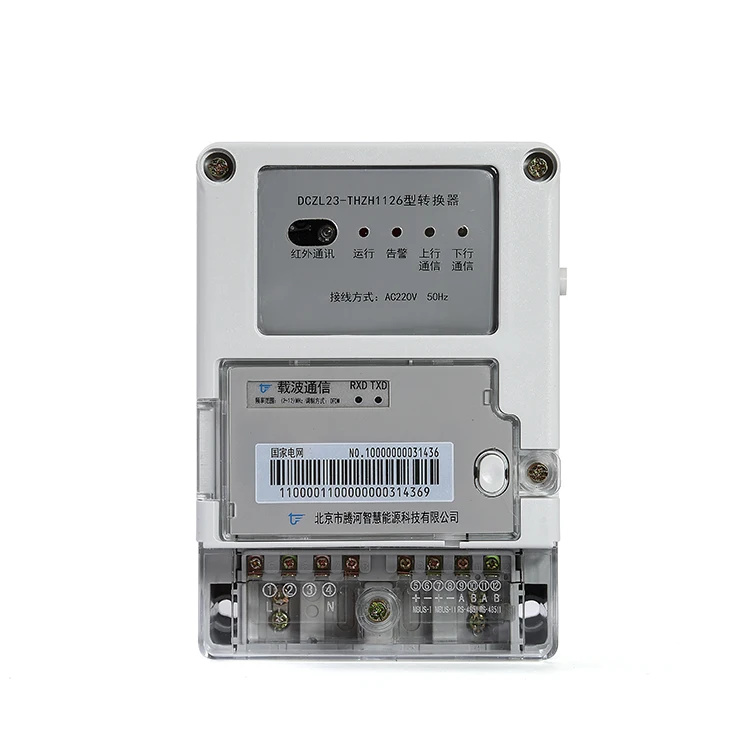

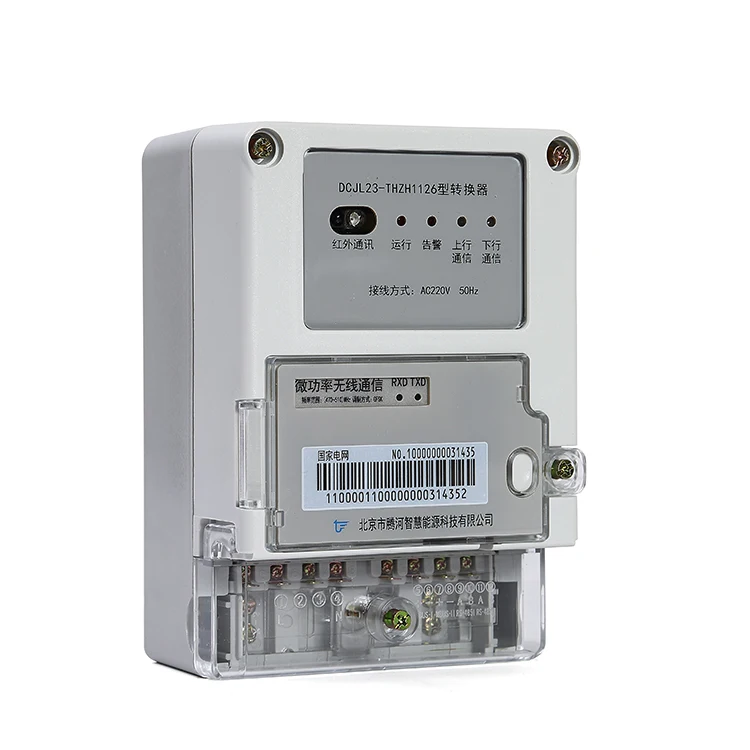

SummaryARM Cortex-M3, Cortex-M4 high-performance embedded hardware platform, TH-TS3 software platform and real-time embedded operation system are used to develop the new generation of power information acquisition terminal products. It can meet the manufacturing standards such as national network QGDW1375.3-2013.Function introductionThe rapid development of various customized functions and applications.Four meter centralized reading: support the protocol conversion of various water, electricity, gas and heat meters to achieve data acquisition.Channel switching.It supports a variety of local communication modes: Modbus, RS485, RF, HPLC, G3PLC, hybrid and so on.Support a variety of remote communication modes: GPRS, CDMA, 4G , NB, Ethernet and other communication modes.Support a variety of upgrading methods: support U-disk, remote FTP, remote master station multiple upgrade mode.High performance switching power supply design, suitable for various power environments.Support multiple cost control: purchase electronic control, monthly electronic control, power control and so on.It supports remote electricity sale and control.Support network automatic maintenance.Support local automatic search meter function.It supports real-time acquisition and real-time master station communication. Product design featuresComply with relevant industry standards and State Grid Company's technical specifications and compatibility is great.The data processing ability is high while the communication is stable and fast as well.Low cost, easy to process and great stability.Communication protocolThe rapid customization agreement includes, not limited to:Downlink protocol: DL/T645-1997, DL/T645-2007, CJ/T188-2004, object oriented 698.45, DL/T645-188, various local special protocols and other customized communication protocols.Uplink protocol: Q/GDW1376.1-2013, object oriented 698.45, various local special protocols, and other communication protocols.4Choose a variety of Smart Meter on demand.
Specification
Description
Select with the system design .Acquisition Terminal is equipment to collect all the data on site from the meter and sensors, and
to give
Place of origin
Beijing, China
Operating system supported
Linux
Protocal
Customized(DLMS,Local protocal,etc.)
Port supported
Customized(Di,Do,RS485,RS232,Ethernet,Optical fiber,rtc.)
Remote communication
Customized(GPRS,NB-IoT,LoRa,etc.)
