PRODUCT SHOW
PRODUCT INFORMATION
Brand:
Canruo
Transmitting power:
+27dBm
Working voltage:
1.8～3.7V
Receiving current:
10～14mA
Working frequency:
400-510Mhz
Data rate:
1.2K～300Kbps@FSK, 0.018K～37.5Kbps@ LoRaTM
Modulation method:
FSK, GFSK, MSK, GMSK, LoRaTM, OOK
Frequency error:
±10ppm
PRODUCT DETAILS

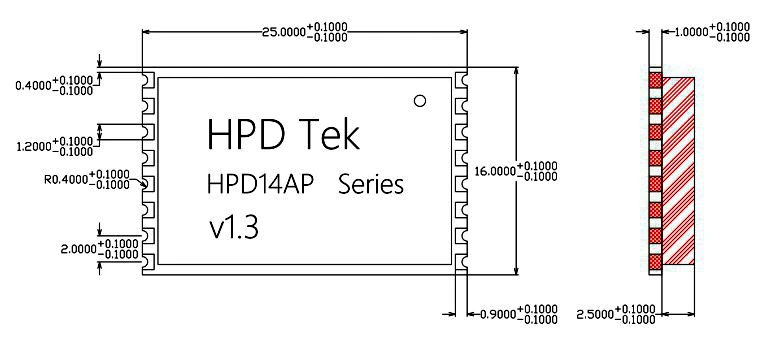

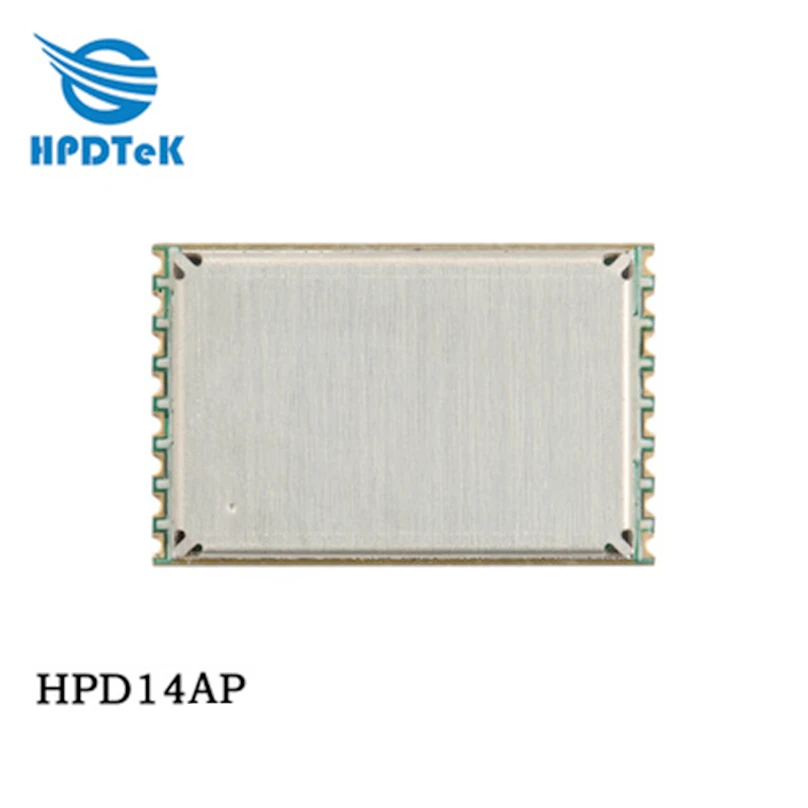

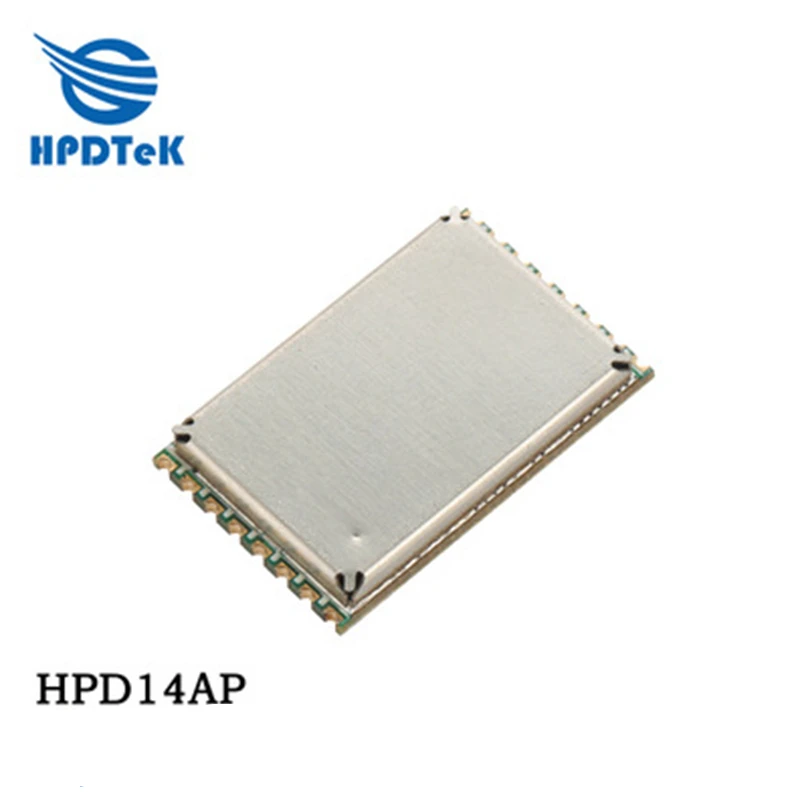

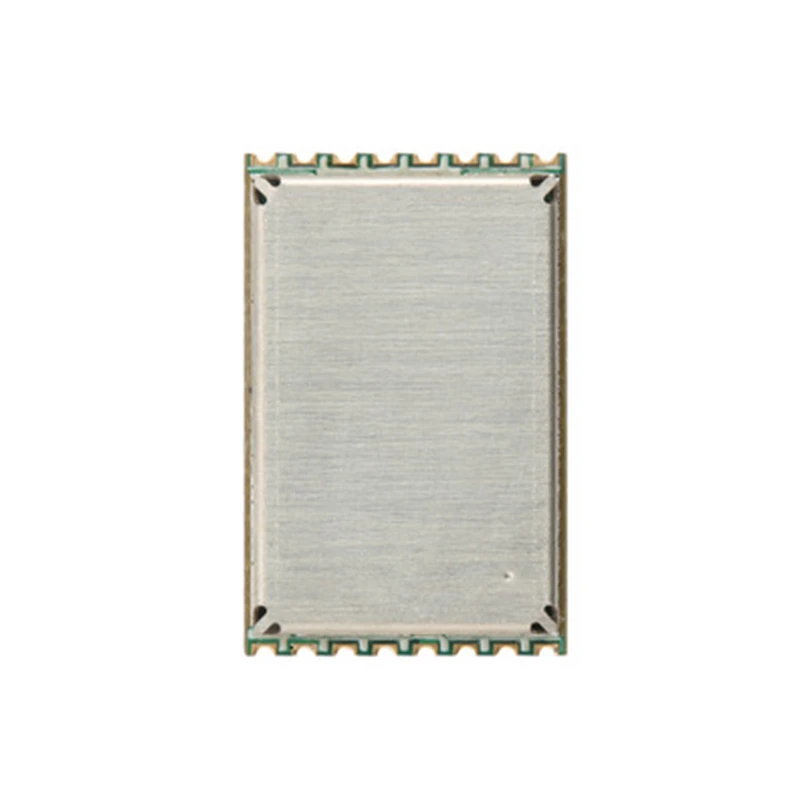

Product description:HPD14AP wireless transceiver module, using Semtech SX1278 LoRa RF transceiver chip + PA design, working in the 433/470MHz ISM frequency band, integrated 32MHz crystal oscillator, half-duplex transceiver module, power up to +27dBm, as low as -139dBm receiving sensitivity. Automatic switching of receiving and sending, isolation of internal receiving and sending channels, advanced LORA spread spectrum communication technology, with strong anti-interference and privacy, can realize long-distance wireless data sending and receiving. The module volume is 16*25*3.5mm, which is convenient to be embedded in portable products.The product meets ROHS environmental protection standards.
Product Features:◆Working voltage: 2～5V◆ Receiving current: 10～14mA◆ Working frequency: 433MHZ, 470MHZ,◆ Transmitting power: 27dBm◆ Frequency error: +/-10ppm◆ FIFO space: 64Byte◆ Data rate: 1.2K～300Kbps@FSK, 0.018K～37.5Kbps@ LoRaTM◆ Modulation method: FSK, GFSK, MSK, GMSK, LoRaTM, OOK

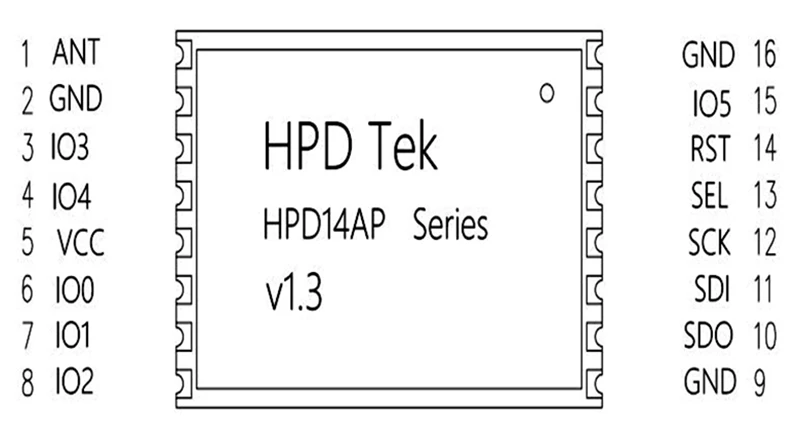

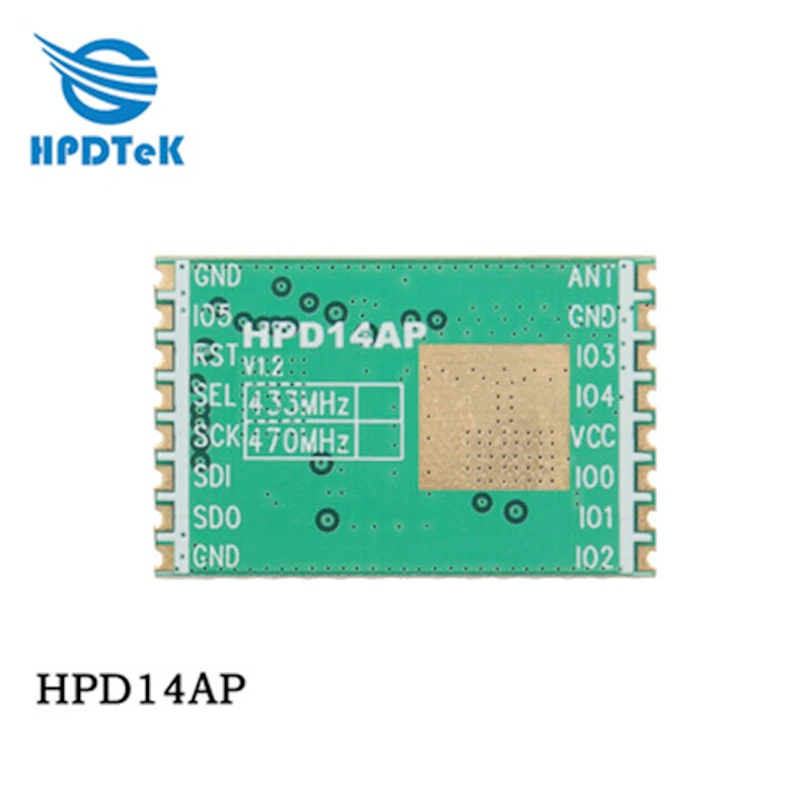

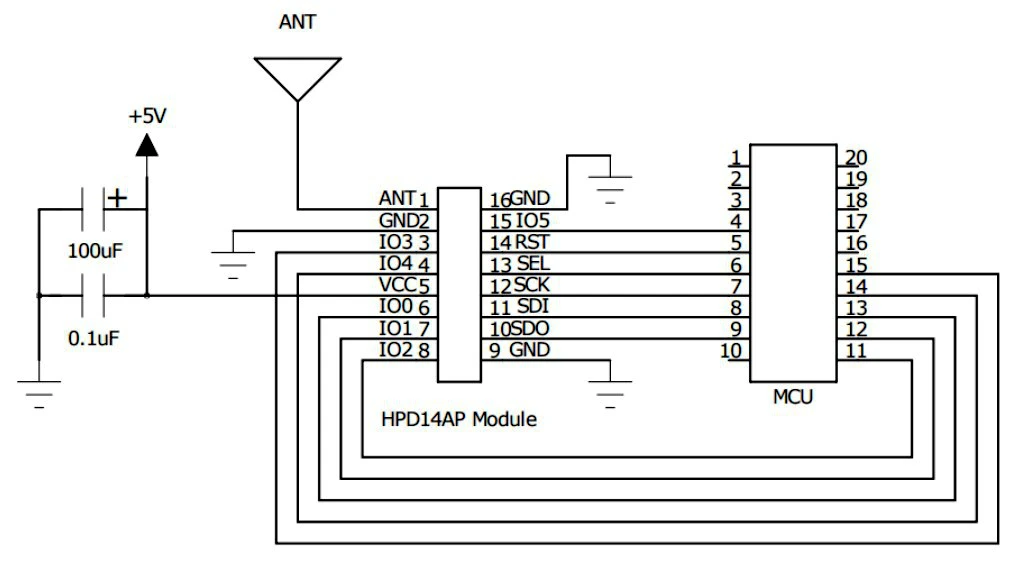

Pin definition:
Number, name, type, function1.ANT: I/O, RF signal input/output, connected to a 50Ω antenna2. GND: negative ground of power supply3. IO3: I/O, directly connected to the chip DIO3 digital I/O pin, software setting4. IO4: I/O, directly connected to the chip DIO4 digital I/O pin, software setting5.VCC: positive power supply 1.8～3.7V6.IO0: I/O, directly connected to the chip DIO0 digital I/O pin, software setting7.IO1: I/O, directly connected to the chip DIO1 digital I/O pin, software setting8.IO2: I/O, directly connected to the chip DIO2 digital I/O pin, software setting9.GND: Power negative ground10.SDO: 0, SPI interface MISO data output11.SDI: I, SPI interface MOSI data input12. SCK: I, SPI interface SCLK clock input13.SEL: I, SPI interface NSS selection input14.RST: I/O, reset pin15. IO5: I/O, directly connected chip DIO5 digital I/O pin, software setting16. GND: Power negative ground
