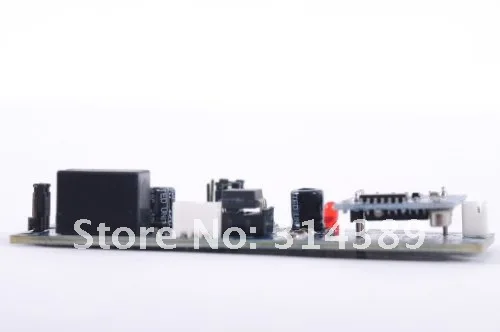

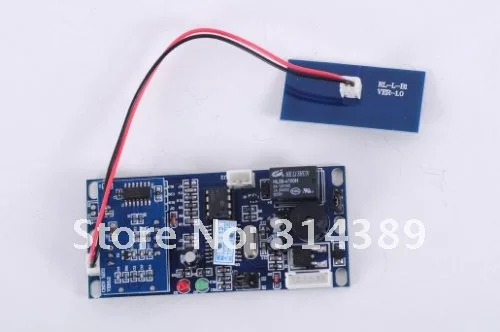

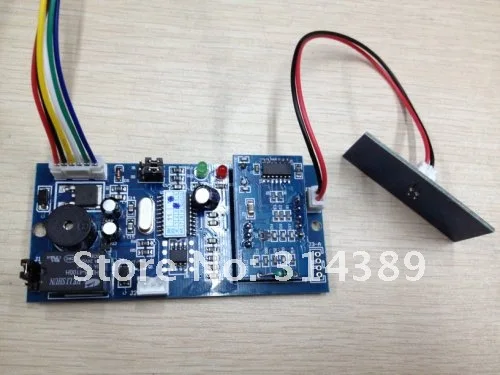

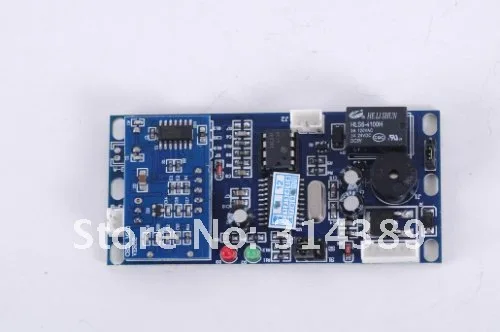

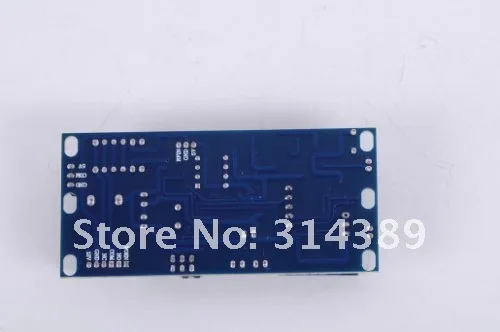

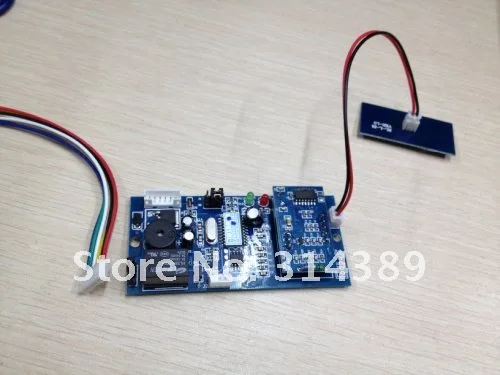

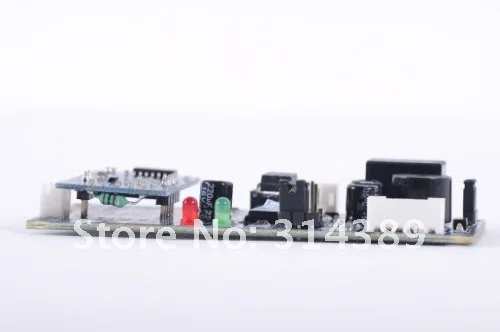

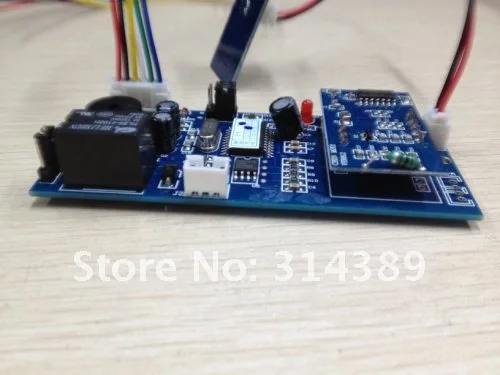

5000 User Standalone single door RFID 13.56Mhz MF1 IC card infrared remote Access Control module w/ Antenna

The Item has 1 infrared remote and 1 pcs of sample cards come with.If you need more remotes,please let me know.
CB-A access control instruction
1:arameter

Voltage	DC 9-12V
Current	60mA~80mA
Swiping Range	5~15cm
Operation temperature	-40 ~60
capacity	5000 Users
Card type	compatible IC card(Mi-fare 1)

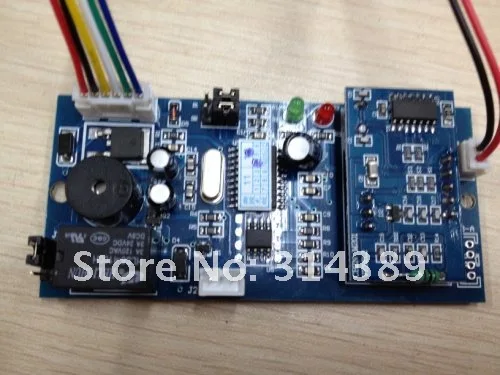

2:Wiring
J1

Wire No.	Wire color	Symbol	Description
1	Red	+12V	+12V
2	Black	GND	ground
3	Yellow	NC	Relay Normal Close
4	White	NO	Relay Normally Open
5	Green	COM	Relay common port
6	Blue	OPEN	Exit button(low level available)

Wire No	Wire color	Symbol	Description
1	Green	5V	5V
2	White	GND	GrounD
3	Black	DATA	DATA

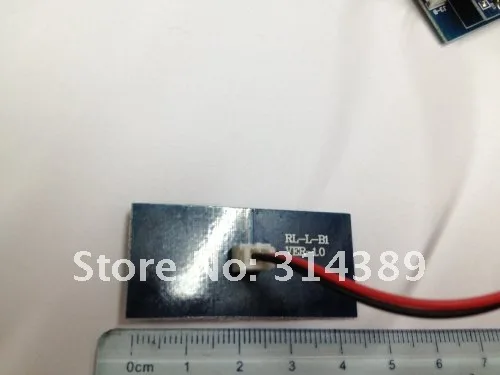

J3-B

Wire No	Wire color	Symbol	Description
1	Red	TX1	Antenna pin1
2	Black	TX2	Antenna pin2

3:

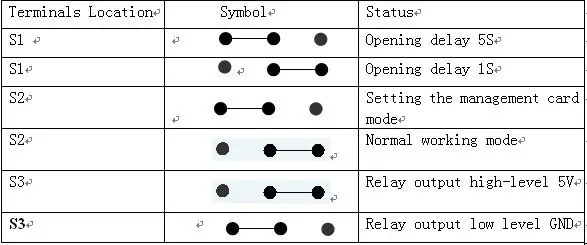

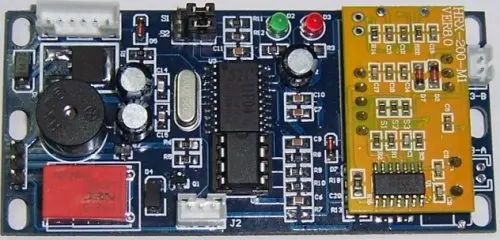

Short-circuit terminals description
5000 User Standalone single door RFID 13.56Mhz MF1 IC card infrared remote Access Control module w/ Antenna - Famidy.com

4:
Operating Instructions
How to make a management card
1 Power off,S2 Short circuit to 0,then,Power-on.Red and Green Flash alternately
2 Read two cards,Green LED flashs.
3 the first card is management card and the second one is deleting card.
How to Enroll user cards
4 Read management card,the green LED is flickering
5 Read unregistered cards one by one
6 Read the management card again to complete the operation.
How to delete user cards
7 Read the deleting card,Red LED flickering.
8 Read the user cards those should be deleted one by one.
9 Read deleting card again to complete the operation.
How to delete all the user cards
10 Read the deleting card,Red LED flickering.
11 Read the management card.
12 Wait for 5 Seconds until Green LED on,meantime all the user cards deleted.
Infrared operation
:
Enter the operation system:Press 1234 CALL
Enroll cards:Press 1,Green Flickerring,swipe new cards one by one
Delete cards:Press 3,Green Flickerring,swipe cards to be deleted one by one
6
.Infrared instructions

Enrollcard number	Press 0--Green light--PressXXXXXXXX CALL (XXXXXXXX is the number printed on the card)
Deleted card number	Press 2XXXXXXXXXX CALL
Delete all the cards	Press 4 CALL-- a few seconds later -- beep -- deleted.
Door normally open	Press 5 CALL
Door normally close	Press 6 CALL
Open door for once	Press 7 CALL
Change the Password	Press 8XXXX CALL
Exit operation system	Press EXIT or Automatically exit if 10s without any operation

Picture Size:34*86MM
