Product Description

Specification |
|
|
Model name: |
OTP621 |
|
Contactless Cards |
EM125KHz |
|
User capacity |
1,000 users;1,000user password |
|
Identification mode |
Card, password, card+password, multiple cards |
|
Keypad |
Metal keypad with backlight |
|
Keypad output |
4 bits |
|
APB |
External Wiegand 26 reader |
|
Power supply |
DC12V±10% |
|
Current |
≤100mA (static mode) |
|
Interface |
Weigand 26 |
|
Operating Distance |
0-8cm(depending on environment and antenna) |
|
Relative Humidity |
10%~90% |
|
Operating Temperature |
-45~60ºC |
|
Protection |
IP68 |
|
Alarm |
Tamper proof, anti-vandal |
|
Product Size |
130*58*24mm |
|
Door Opening Time |
0-99s(Adjustable) |
|
Short-circuit Protect |
≤100μS |
|
Indicators |
Buzzer and led |
|
Others |
Interface to connect with door bell, exit button |
|

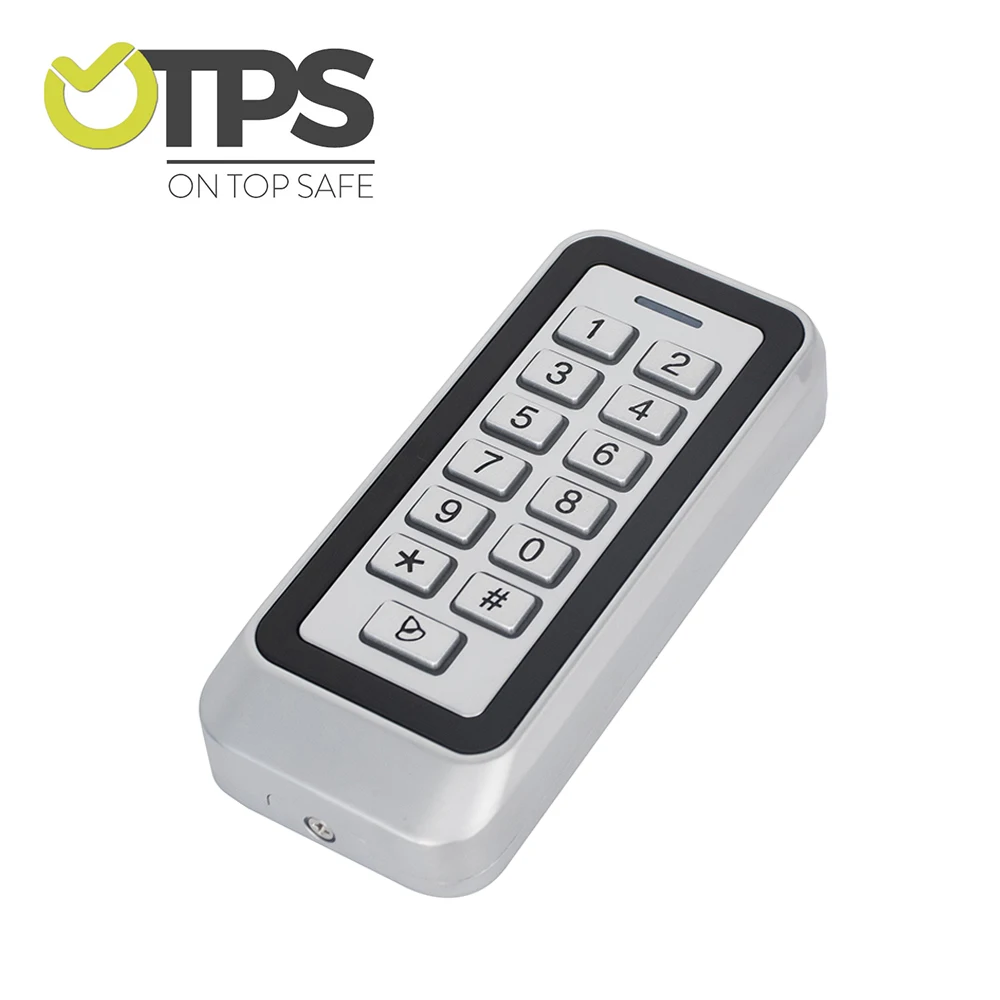

OTP621 Model
1.Waterproof, can be installed outdoors.
2. Metal keypad and case,
Resistance to fall.
3. Unlock with RFID key card, or password, or RFID key card+password




OTP620 Model
1. water-proof, can be installed indoors and outdoors.
2. touch keypad
3. support RFID card, password and card+password
4. User capacity up to 3000 users


OTP630 Model
non-waterproof, only installed indoors

Certificate
