All devices supprot TCP/IP/USB. Provide free software and English instruction. Can be used as a access controller to open the door. Besides, can be used as a time attendance machine for the
employees.
Kit 1
:Support Face, password
verification.
NOT Support RFID Card.
Not support WiF
i.
Kit 2
:
Support Face, password
verification.
Support RFID Card.
Not
Support WiFi.
Kit 3
:
Support Face, password, Not Support RFID Card
verification.
Support WiFi.
Kit 4
:
Support Face, password
verification.
Support RFID Card. Support WiFi.

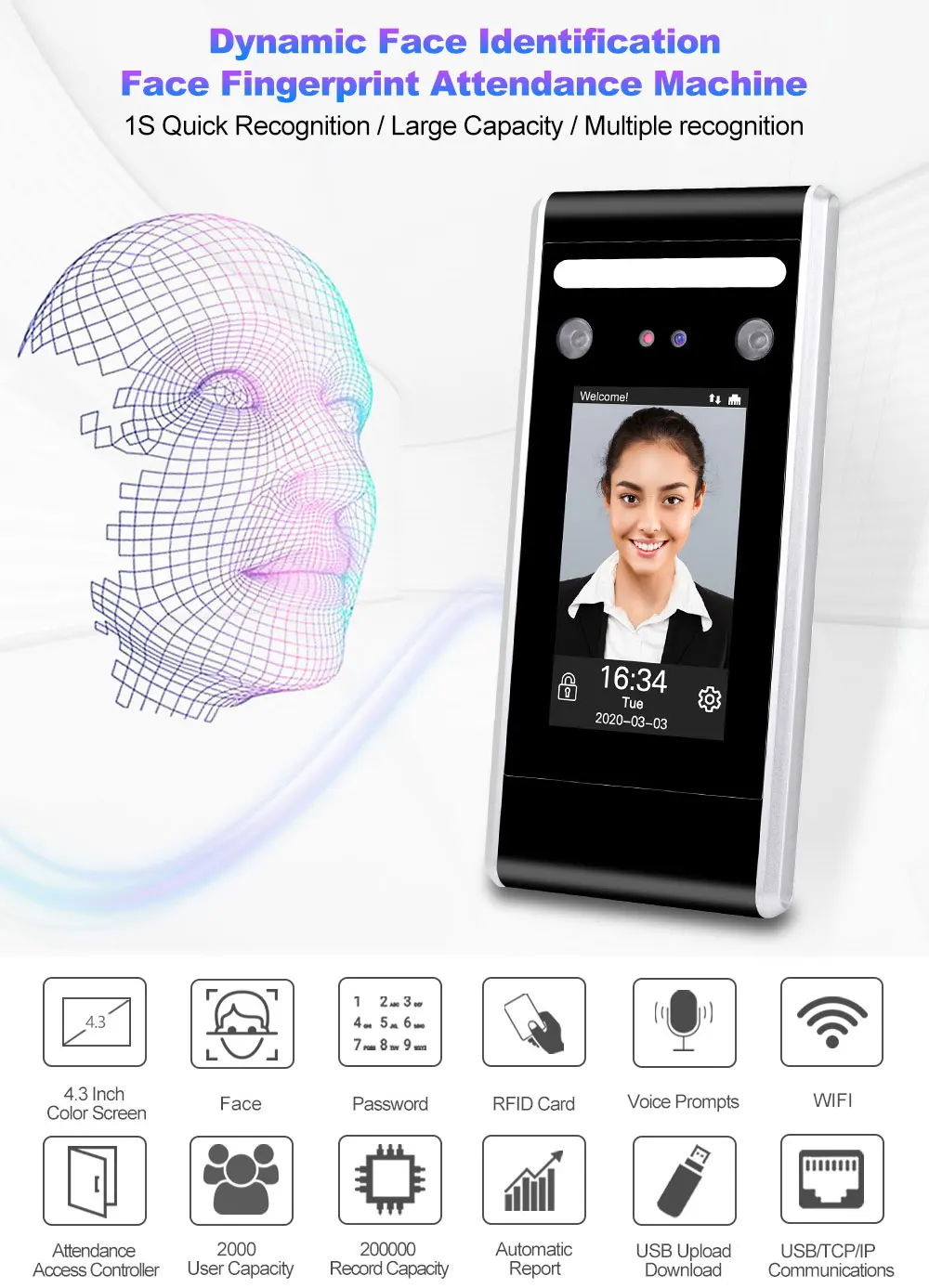

Dynamic Face Facial Recognition
Access Control Time Attendance Machine
Face / Password / RFID Card / Wifi (optional)

Product Features:
1) 4.3inch TFT LCD Color screen. Made of high quality material.
2) Working with DC12V, will supply a DC12V power plug.
3) Has high-resolution infrared night vision light and professional color duo camera, can carry out quick verification in any environment.
4) Dual light source ( 2 infrared ligth + white light). Can be recognize even at dark.
5) 0.1s identification speed, Very fast! Support face detection distance 0.5-2 Meters.
6) Working with both 125KHz and 13.56MHz frequency. Support both EM and Mi-fare cards.
7) Support 2000 facial, 2000 password, 2000 RFID card (Optional ), 200000 record capacity.
8) Supports face, password, RFID card and various combination methods, in order to satisfy the demands of different users.(optional)
9) T9 input method editors, on the machine name, Department, frequency and other information, can be directly output attendance reports, very easy to operate.
10) Support WIFI / TCP/ IP communication method. Support USB Flash drive upload download attendance data. (Optional)
11) Has Wiegand26/34 input/output, TTL input/output, relay output
12) Support English menu and humanized voice prompt.
13) Recognizes normally even when wearing a mask. Cant be recognize with photos or video.
14) Suitable for the entrances and exits of office, factory, hotel, school, etc.
Product Details

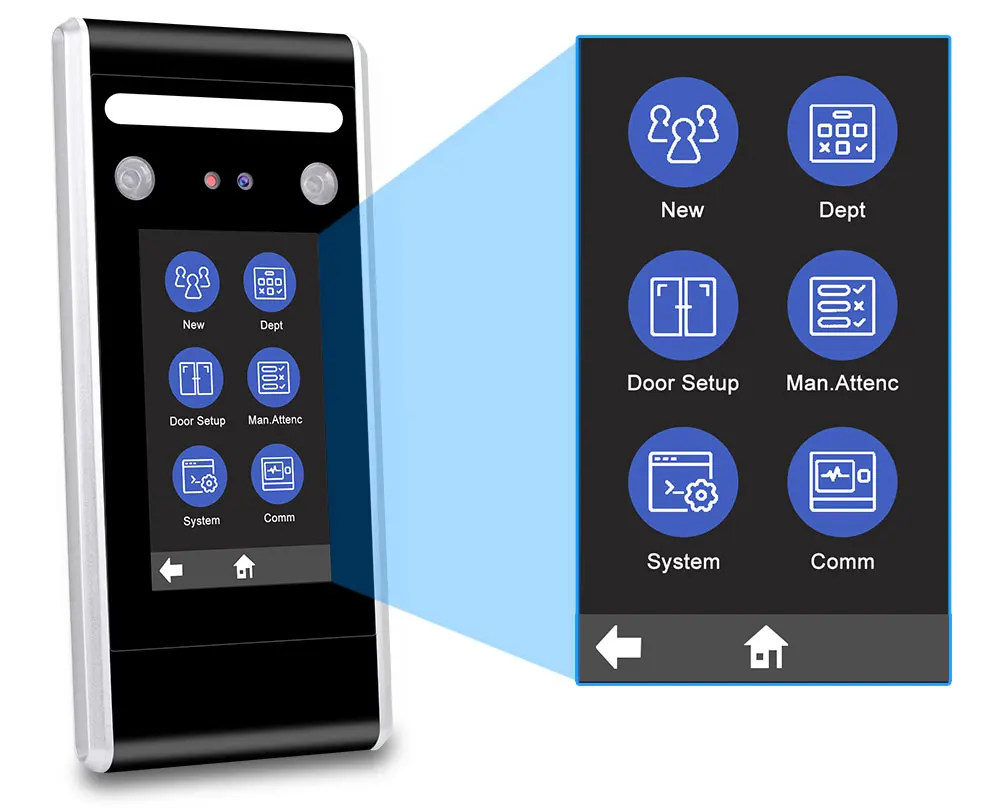

4.3inch TFT LCD Touch Color Screen. English interface
Very easy to
operate

Dynamic Face Identification.
Save a lot of time
Wide angle detection of dynamic faces, fast face recognition in 0.1 seconds
the recognition distance is up to 2 meters

Intelligent face recognition
Easily deal with all kinds of problems
Item not only prevents employees from using photo or video attendance, but also intelligently recognizes changes in your appearance.
Even if you have makeup, hats, and glasses, you can quickly identify them without queuing.

Bulit in HD Dual light source ( 2 infrared ligth + white light)
Can be recognize even at dark
With its high-resolution infrared night vision light and professional color duo camera,
it can accurately identify and verify the second speed even in the extremely dark or extremely bright environment.
鈥?/span>

Support both 2 types RFID Card verification (Optional)
Support smart sensing technology, identify sensitive, you can open the door with RFID card convenient. Works with both 125KHz and 13.56MHz frequency, EM and Mi-fare cards. (not all machine support this function)

Large capacity.
Dont worry about the loss of attendance records

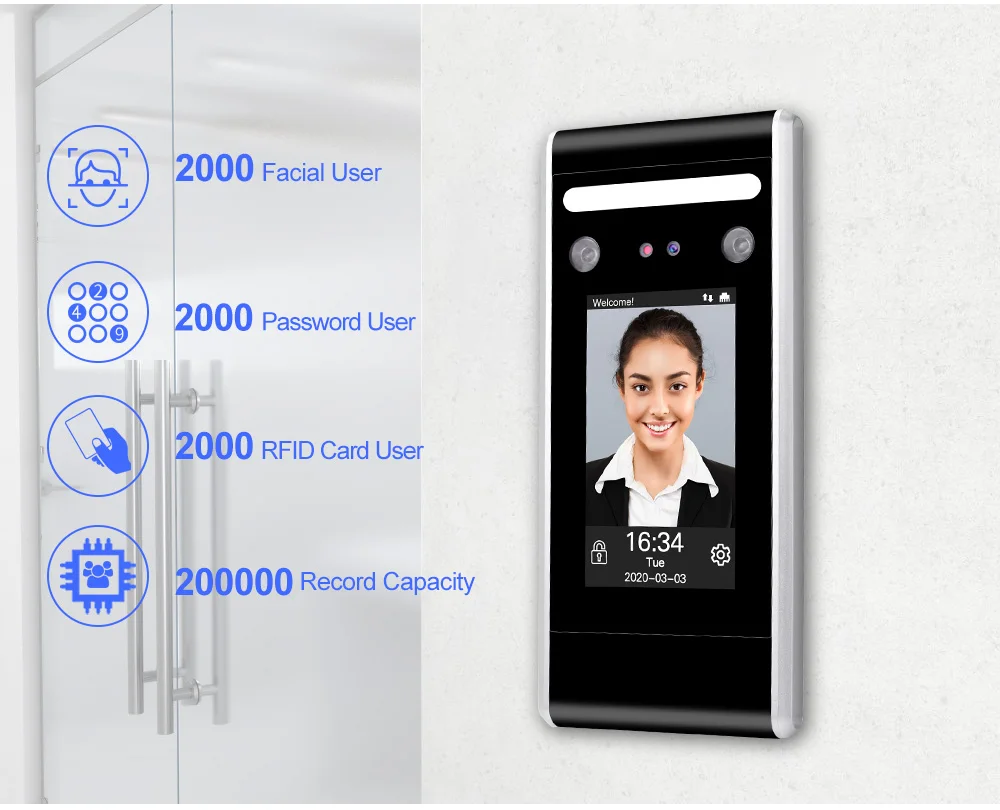

Large-capacity high-speed memory, support 2000 face, 2000 password, 2000 RFID cards, 200,000 record capacity. Suitable for enterprises of all sizes. (Not all devices support RFID card reader function)

Support off-line or TCP / IP using
1, This device support to check-in to attendance without networking. Doesnt need to wiring and connect the
network. Support to use U-disk to download and upload the attendance report data. (not including U disk )

2, This device support to connect to computer through the TCP/IP communication network,
download the attendance report data on the computer.

3, This device support to connect to computer through the Wifi communication network,
download the attendance report data on the computer.

Product Analysis

Package Included:

1 x Face access control machine
10 x RFID Keyfobs (optional)
1 x CD (including the software)
1 x Bracket
1 x Screw kit
1 x Power plug
1 x User manual
Very Important:
Please leave a message which type of the power plug you want, otherwise, we will send EU type by default.

Product Specifications:
Material:high quality plastic
Processor:4-core 1.2G
Operating memory capacity:1G DDR3
Storage capacity:8G eMMC
Operating system:LINUX intelligent operating system
Display:4.3 inches
Screen resolution:480 * 272
Camera:200W pixel HD color camera, 100W infrared camera
Fill light:LED highlight fill light, dual infrared high power fill light
Ambient light:0-50000Lux
Dynamic range:120dB
Face capacity:2000
Password capacity:2000
Card capacity:2000 groups
User records:200,000
Identification method:face, password verification, card (optional)
Face recognition mode:1:1, 1:N
Identification function:name identification, work number identification
Face recognition time:less than 200MS
Intelligent function:infrared live detection
Recognition distance:0.5-2 meters
Keyboard:On-screen touch virtual keyboard
Communication interface:TCP / IP, USB, WIFI (optional)
Rejection rate:<= 0.1%
Misunderstanding rate:<= 0.0001%
Working voltage:DC12V ± 10%
Power requirements:DC 12V, 3 ~ 5A
Working temperature:-15 ° C to 60 ° C,<90 ° C RHIP65
Appearance size:200mm * 95mm * 25mm
Identification distance is 0.5-2 meters, installation height can be 1.2-1.5 meters
鈥?/span>

Wiring Diagram:
1. If you want to use it as face time attendance machine, just connect it to a DC12V power plug then ok. (this package including a power plug)
2. If you want to use it as a face access control keypad, then must need to work with DC12V power supply, electric lock, exit button.
(
Note:both of the access control
power supply, locks, exit button, door bell are NOT included in the package, need to buy extra)
