Model锛欰BE2-150
Features: |
| * Full time NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc. |
| * Digital frequency conversion. |

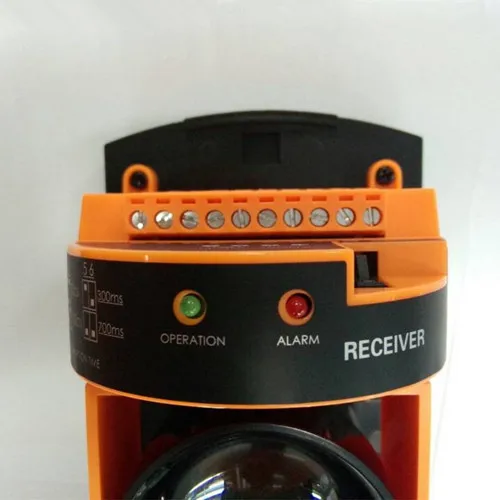

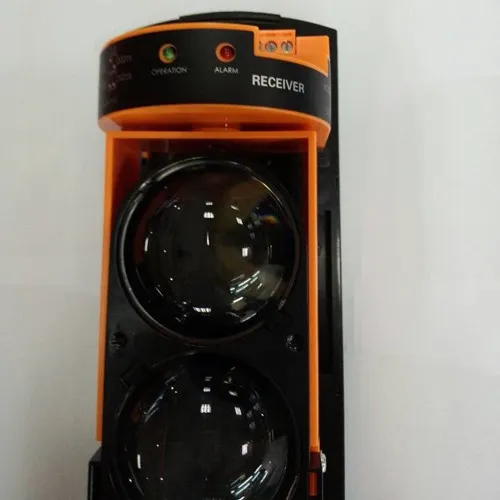

| * Easy alignment with visual LED indicator. |
| * PC engineering plastic material |
| * Professional waterproof design with the rubber seal around |
| * Resistant to rain, fog, snow and frost. |
| * IP degree:IP65 |
| * Adopt microprocessor control(CPU), real digital circuit. |
| * Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light |
| * AGC circuit, the detector will automatically increase sensitivity when faced harsh environment. |
* Horizontal / vertical optical angle can be easy to adjust

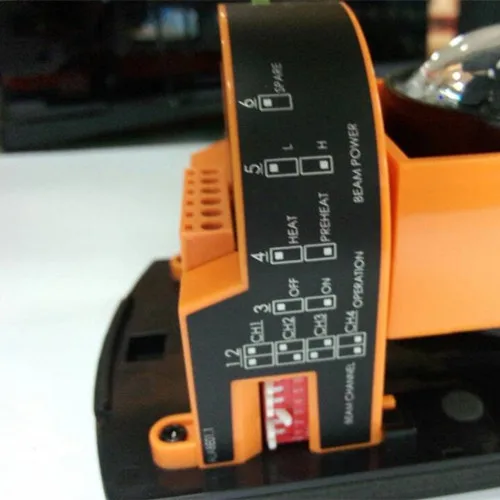

| Model | ABE2-50 | | ABE2-100 | | ABE2-150 | ABE2-200 | ABE2-250 | | Detecting distance(outdoor) | 50m | 100m | 150m | 200m | 250m | | Detecting distance(indoor) | 150m | 180m | 240m | 300m | 750m | | Detection method | Simulataneous interruption of 3 infrared beams | | Response speed | 50ms,100ms,300ms,700ms(adjustable) | | Number of baems | 3 beams | | Frequency | 4(optional) | | Alarm cycle | 2±
1s | | Tamper | NC.works when cover is removed | | Current consumption(Max) | 70mA | | Power and Voltage | DC12-24V,AC11-18V | | Current consumption | 100mA MAX | | IP rating | IP65 | | Operating temperature | -25o
C~ +55o
C | | Humidity | 95% MAX | | Alarm output | Relay output 1C. contaxt output,DC/AC30V/0.5AMax | | Correction angle | Horizontally 180°,vertically 20° | | Installation location | Indoor/outdoor,wall/pole | | Weight | 1.9kg |
|
