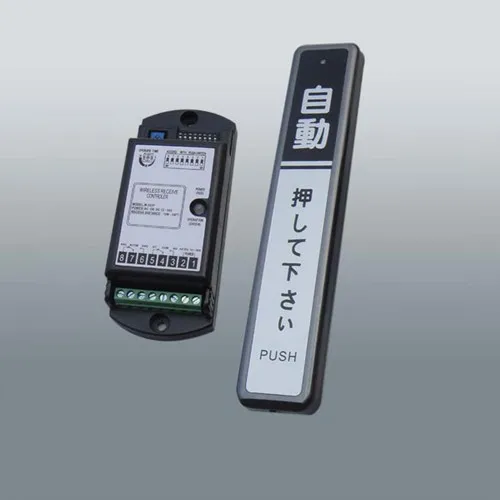

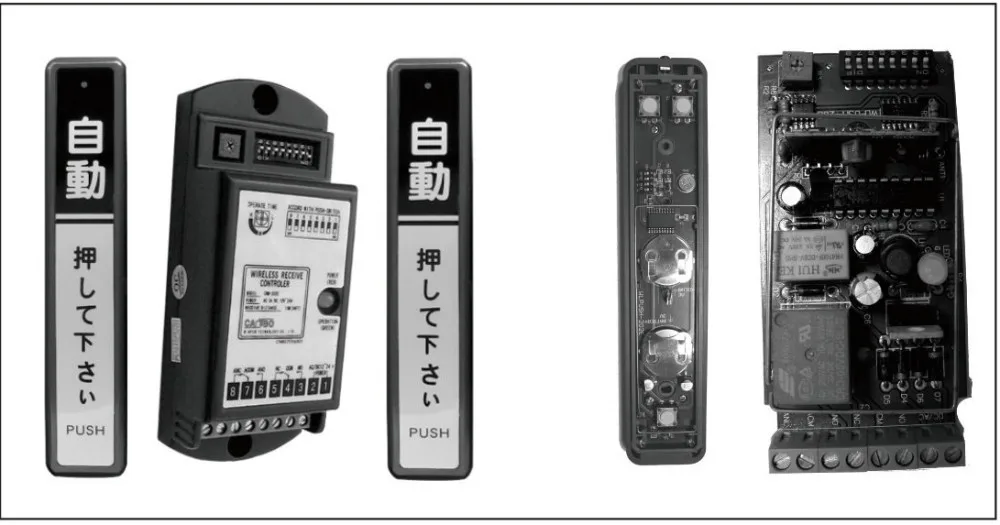

  The technology parameter Supply power(Wireless Receiver):AC/DC 12~36V Quiescent Current:15mA Active current:80mA Capacity of the main contact(Wireless Receiver):10A 24VDC Capacity of the deputy contact:1A 24VDC Contact pull-in time (Wireless Receiver):1~9s adjustable Supply power (Hand converters):4.5V Emission current:3.9mA Battery life:the average daily charge 500 times, the high quality battery can withstand 300 days The distance of Sending and receiving:according to the actual site electrical shielding environment, normal conditions up to 5 meters Working environment temperature:-42~45oC Working environment humidity:10~90%RH Appearance dimensions: Hand converters:203(L)x41(W)x18(H)mm Wireless Receiver:123(L)x50(W)x32(H) Weight:195g(Hand converter, not contain battery) 150g(Wireless Receiver) Product Overview  1)the indicator light to send(flashing red light when triggered effective). 2)Poker press panel. 3)Open the cover, set dial switch inside, and is allocated with wireless receivers ,to send and receive effective. 4)the screws to prevent falls off and retain. 5)adjust trigger hold time. 6)Matching dial(dial needs agree with the touch switch). 7)Status indicator light(An electric red light, green light to receive effective). 8)Input and Output Terminals. The overall characteristic SAW resonator frequency stabilization techniques, frequency consistency, high stability of wireless transceiver. Send and receive dial code matching, the user operation is simple and convenient. PU varnished shell solidification and thick film label, beautiful shell wear, and designof anti-off screw. Operating frequency315M, stability better than 10-5. Transceiver uses built-in copper antenna, wireless transmission distance, strong anti-interference ability. Hand & device using low power transmission technology, far transmission distance, low power consumption, long battery life . Design of three-point press the trigger to ensure the device poker hand pressed charges effective, compact and reliable trigger a good hand feeling. With the size of the output capacity of two sets of contacts are available for external automatic doors and electric lock access control requirements. After receiving wireless, the trigger action time 1~9 seconds adjustable to facilitate a variety of gating requirements. Design of wide input voltage, 12~36V power input is valid. The definition of input and output  Wireless receiver application wiring demonstration  Including: 1*Hand converters 1*Wireless Receiver |
