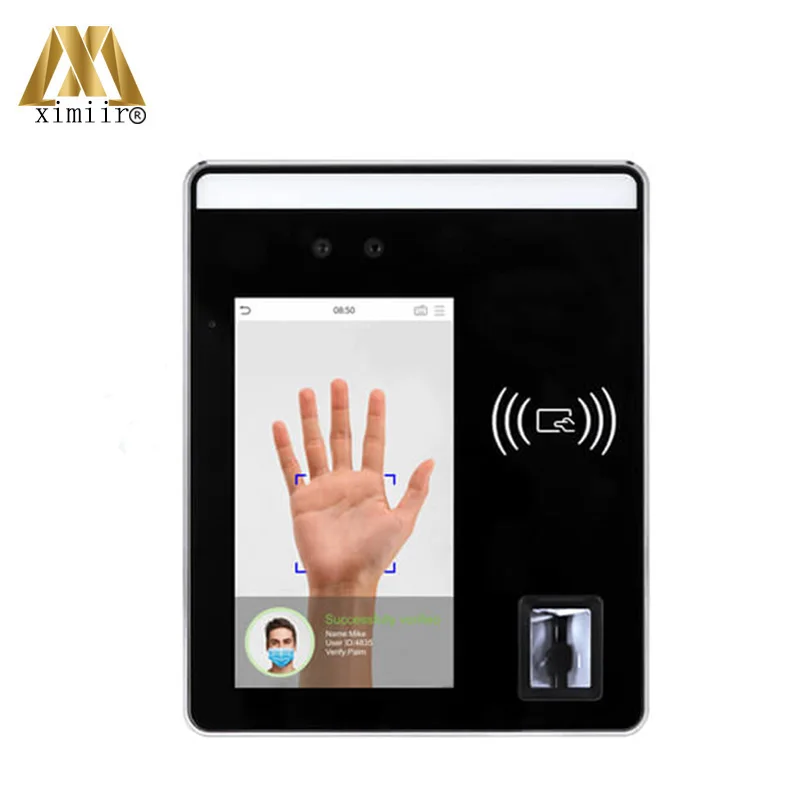

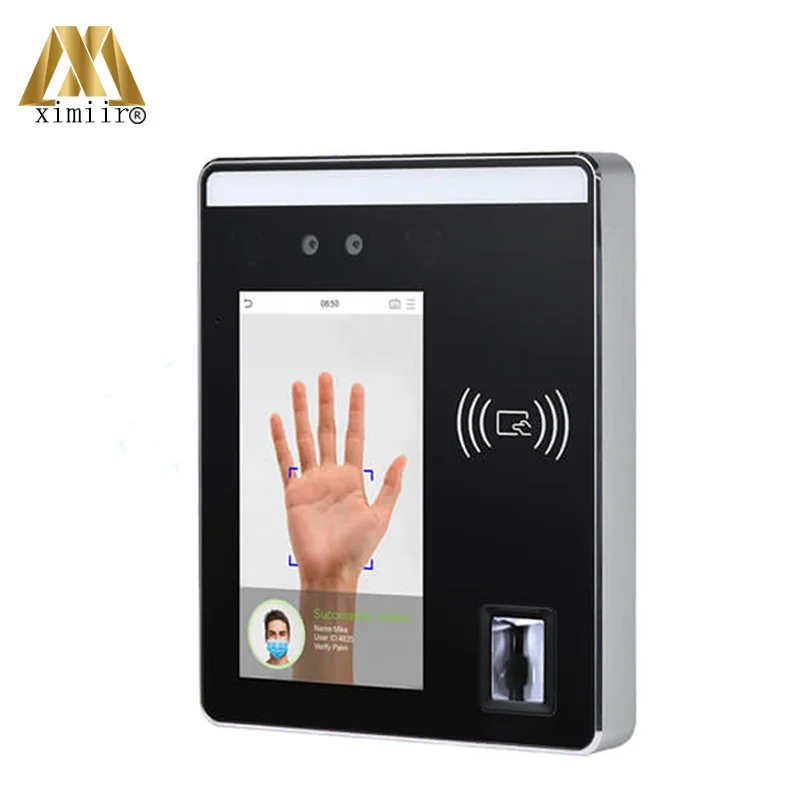

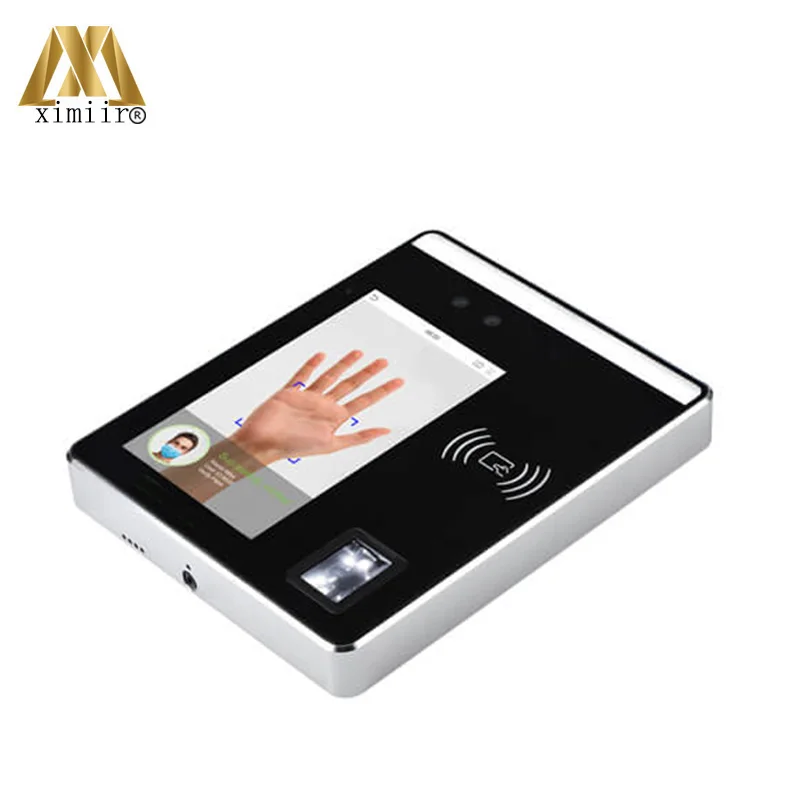

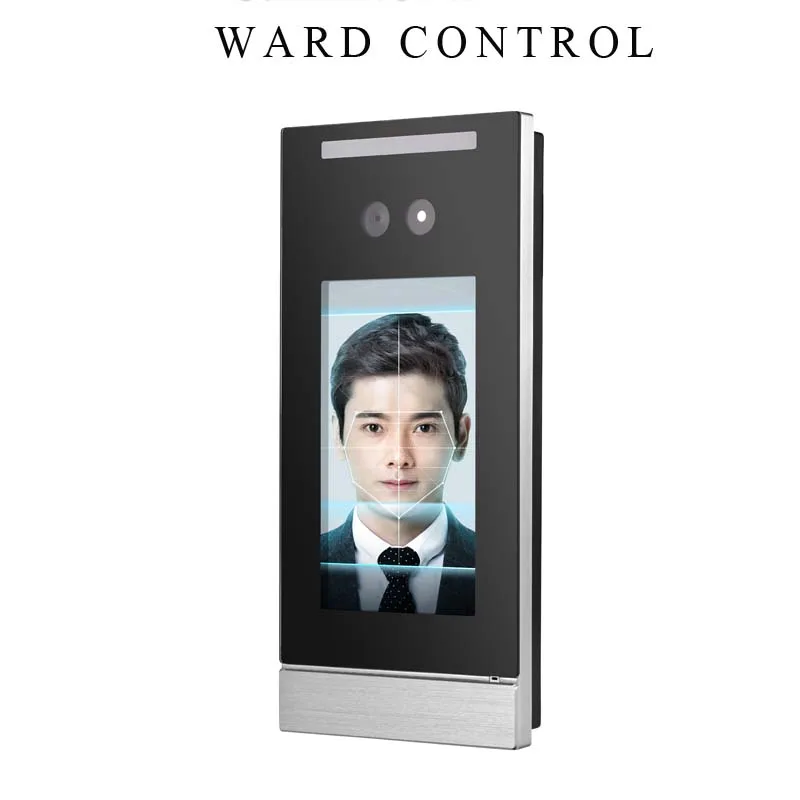

SpeedFace-H5L [P] is a fully upgraded version of the SpeedFace-H5L Visible Light Facial Recognition Terminal,using intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports both facial and palm verification with large capacity and speedy recognition, as well as improves security performance in all aspects.
SpeedFace-H5L [P] adopts touchless recognition technology and masked individual identification which eliminates hygiene concerns effectively. It is also equipped with ultimate antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates.The terminal with mask detection help reduce the spread of germs and help prevent infections straightly at each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, stations during the recent global public health issue with its masked individual identification funtion during facial and palm verification.
路 Visible Light Facial Recognition
路 Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
路 Multiple verification methods:Palm/ Face / Fingerprint / Card / Password
路 Available card modules:125KHz ID card (EM) / 13.56MHz IC card (MF)
路 Supplement light with adjustable brightness
路 10,000 face templates capacity
| Display | 5鈥?touch screen |
| Face capacity | 10000 |
| Palm capacity | 3000 |
| Face capacity | 10,000 |
| Fingerprint capacity | 10,000 |
| Card capacity | 10,000(optional) |
| Logs capacity | 100,000 |
| Communication | TCP/IP,RS232/RS485,Optional WIFI |
| Operation System | Linux |

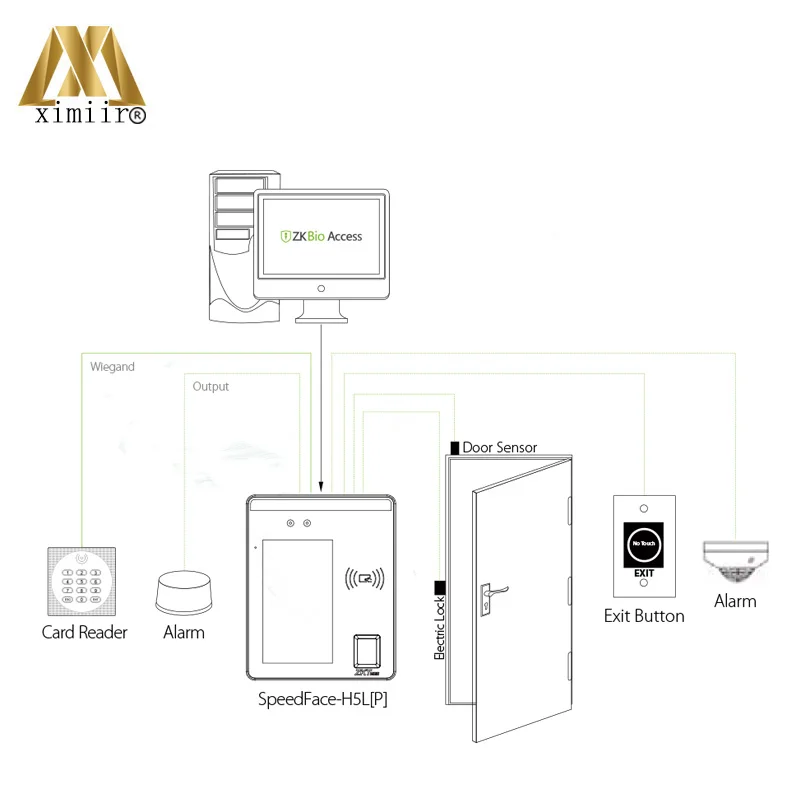

| Access control interfaces for | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input |
| Wiegand Signal | Wiegand input / output |
| Optional functions | RFID card, IC card, ADMS,Extendable Scheduled-bell. |
| Software | Free |
| Power supply | 12V3A |
| Operating temp | 0C- 45 C |
| Operating Humidity | 20%-80% |
| Dimension | 169脳135脳21.5mm |
| Gross Weight | 1kg |
