Introduction:

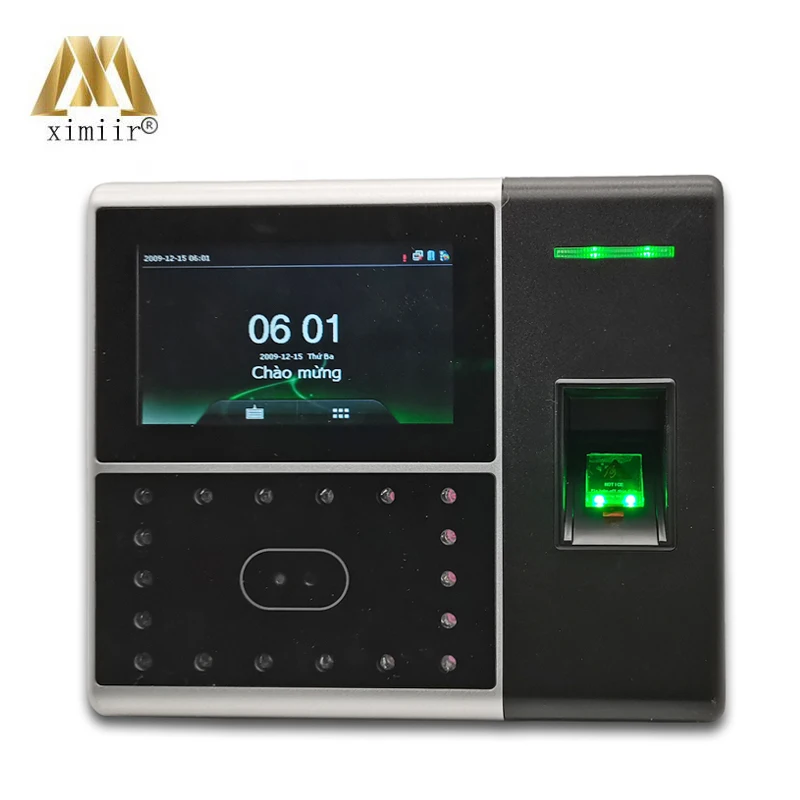

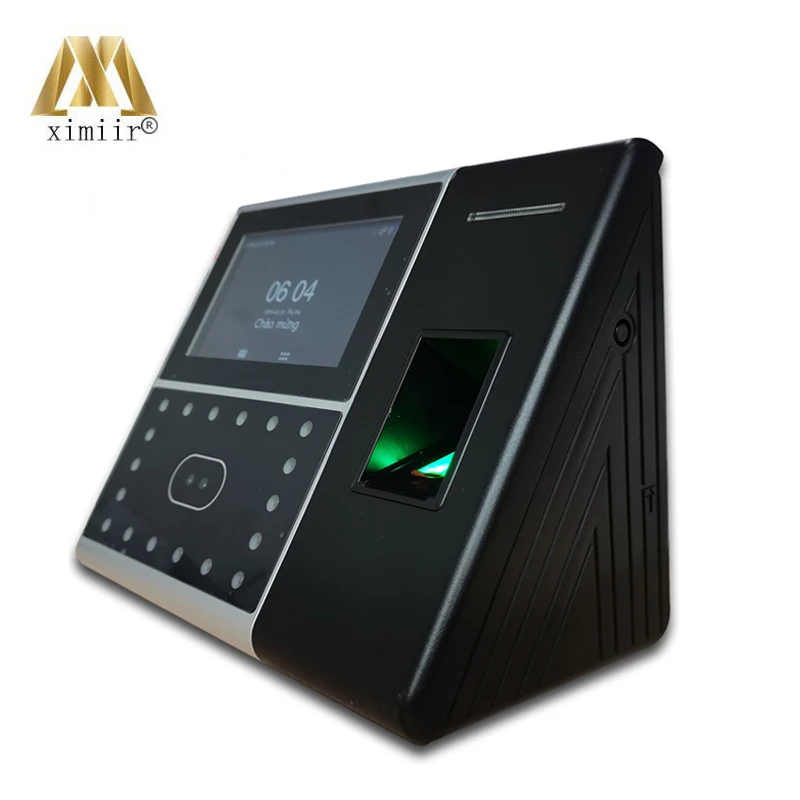

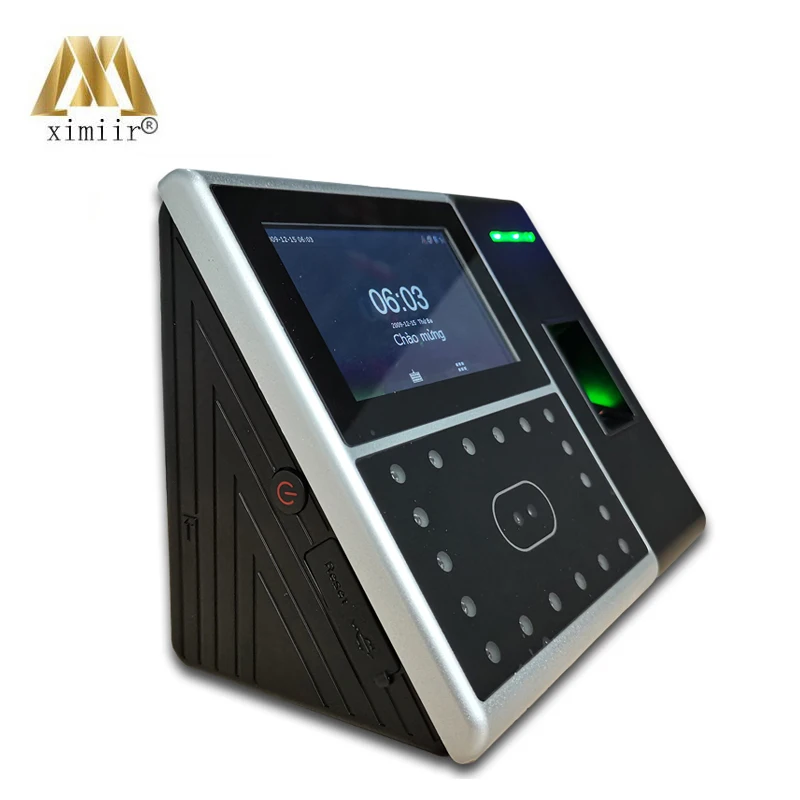

iFace302 multi-biometric identification time attendance and access control terminal adopts latest ZEM600 platform with Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Features:
1. I
dentification methods include Face, Fingerprint/RFID and/or Password
2. Elegant ergonomic design
3. 4.3 TFT touch screen is user-friendly and very intuitive
4. 6 user-defined function keys
5. Contact relays for door access control (wires to door strike or 3rd party panel)
6. Web-server management software via IE browser
7. Optional extendable scheduled-bell
8. Infra-red optical system enables user-identification in poorly lit environments
9. Optional built-in battery backup provides approx 4 hours continuous operation.
10. Optional built-in wireless Wi-Fi or GPRS for wireless communication
11. Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
12. Wiegand Output for connections to 3rd party access control panels.
Specifications:
CPU |
Multi-Bio CPU 630 MHz |
Memory |
256M Flash, 64M SDRAM |
Hardware Platform |
ZMM220 Multi-Medium Development Platform |
Fingerprint Sensor |
Optical Fingerprint Sensor without film |
Camera |
High Resolution Infrared Camera |
Display |
4.3 TFT touch screen |
Face capacity |
500 (1:N) |
Fingerprint capacity |
2000 |
Card capacity |
10000 |
Logs capacity |
100,000 |
Algorithm Version |
Face 7.0 & Finger 10.0 |
2000mAh backup battery |
Optional |
Communication |
TCP/IP,RS232/485 |
USB-HOST |
Y |
Wireless Wi-Fi |
Optional |
Time attendance Standard functions |
IAutomatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
Access control interfaces for |
3rd party electric lock, door sensor, exit button |
Wiegand Signal |
Output |
Optional functions |
serial printer,RFID card, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |

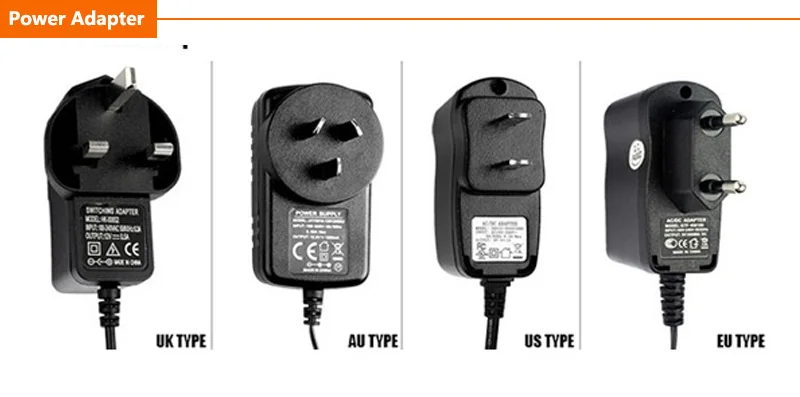

Power supply |
12V3A |
Verification Speed |
2 sec |
Operating temp |
0C- 45 C |
Operating Humidity |
20%-80% |
Dimension |
193.6*146.8*111 mm (Length*Width*Thickness) |
Gross Weight |
1.9 kg |
